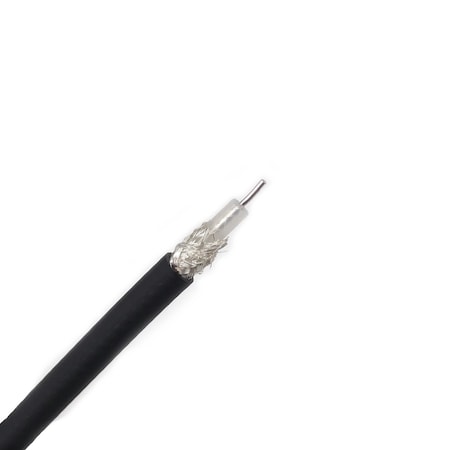

RG-223/U Coax Cbl, Double-Shielded, 0.212" Dia Coax w/Blk PVC Jckt (Non-Contaminating), 10FT Lngth
Mfr # RG-223-10
Zoro # G301910913
product price: $96.45
/eaKey Features
Capacitance
32.2 pF/ft
Impedance
50 Ω
Voltage Rating
1900 Vrms Maximum
Outer Diameter
0.035", 0.116"
Temperature Rating
-40°C (-40°F) to 90°C (194°F)
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
RG-223-10
Zoro #
G301910913
UPC #
-
Country of Origin
United States
Dimensions
Outer Diameter
0.035", 0.116"
2nd Shield Diameter
0.160"
Overall Diameter
0.212"
1st Shield Diameter
0.138"
Details
Capacitance
32.2 pF/ft
Impedance
50 Ω
Voltage Rating
1900 Vrms Maximum
Temperature Rating
-40°C (-40°F) to 90°C (194°F)
Operating Frequency
12.4 GHz Maximum
Dielectric Insulator
Solid, low density polyethylene (PE)
Inner Conductor
19 AWG silver-plated copper
Cable Type
RG-223/U coaxial cable Overall Diameter
Jacket
Black, non-contaminating polyvinyl chloride (PVC), Type IIA per MIL-C-17
Velocity of Propagation
0.66
Shields
Two (2) silver-plated copper braids
Description
RG-223 cable is a type of high-frequency coaxial cable which offers improved shielding and lower signal loss compared to similar cables. As such, it is ideal for many military & civil radio frequency (RF) operations including telecommunications, network (LAN/WAN) connections, GPS, test equipment, and ham/CB/other radio setups, as well as any other signal transfer applications in fields such as aerospace, scientific, and medical. Furthermore, this cable type is approved for direct burial. The cable consists of a solid inner conductor composed of silver-plated copper wire, which is then surrounded by a polyethylene dielectric tube. Outside the dielectric are two shields, which are also made of silver-plated copper. Covering all of this is a black, non-contaminating PVC jacket for additional physical protection.
