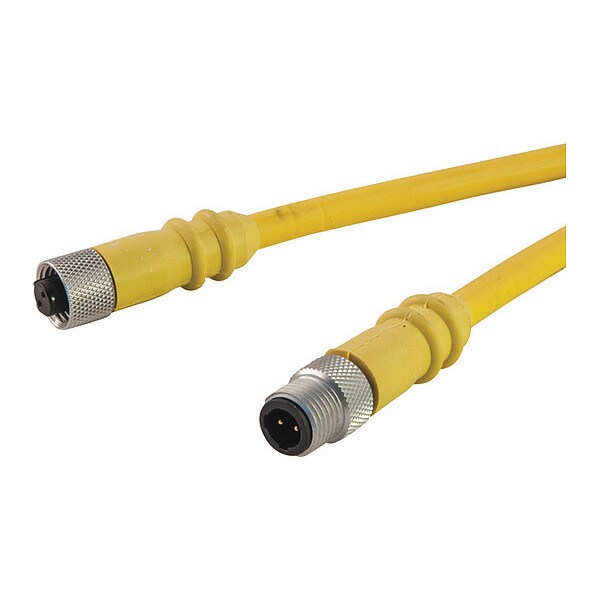

Cordset, Dual Key, M/Fem, 5 Pole, 20 ft. (Discontinued)

Name: Cordset, Dual Key, M/Fem, 5 Pole, 20 ft.
Brand: Remke
SKU: G7209111
Price: 92.15 USD
Availability: Discontinued

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Product Information

Width (in) 2	0.57
Length (in)	2.02
Cable Jacket Outer Diameter (in)	0.39
Cable Length (ft)	20
Width (in)	0.57
Length (in) 2	1.85

Item	Cordset,Dual Key,M/Fem,5 Pole,20 ft.
IP Rating	IP67
Body Material	Rubber
NEMA Rating	6P
Contact Material	Brass, Gold Plated Over Nickel"
Cable Jacket Material	Rubber
cRU Specification	E165657
Wire Gauge	18 AWG
Current Rating (amps)	5
Cable Jacket Color	Yellow
Coupling Nut Material	Aluminum
CSA Specification	E165657
Poles	5
Cable Strand	41 X #34
Minimum Operating Temperature (F)	-29
Wiring Color Code	Auto CC
Cable Code	Auto
Conductor Color 1	Red/White
Voltage Rating (DC)	300
Conductor Color 2	Red/White
Insert Material	Nylon
Contact Carrier Material	Nylon
Minimum Operating Temperature (C)	-34
Maximum Operating Temperature (C)	90
Contact Resistance (Micro Ohms)	5
Coupling Nut Plating	Clear Anodized
Tab Info	IP Ratings,TL APP,Cable Cross,CRT,Cable Jacket Mtl,Knockout Dim,ROHS,Coupling Nut Mtl
Maximum Operating Temperature (F)	194
Thread 1	1/2-20 UNF
Thread 2	1/2-20 UNF
Conductor Color 3	Green
O-Ring Material	Nitrile Rubber
Voltage Rating (AC)	250
Conductor Color 5	Red/Black
Connector Style	MicroLink Dual Key
Cordset Configuration	Straight/Straight
Conductor Color 4	Red/Yellow
