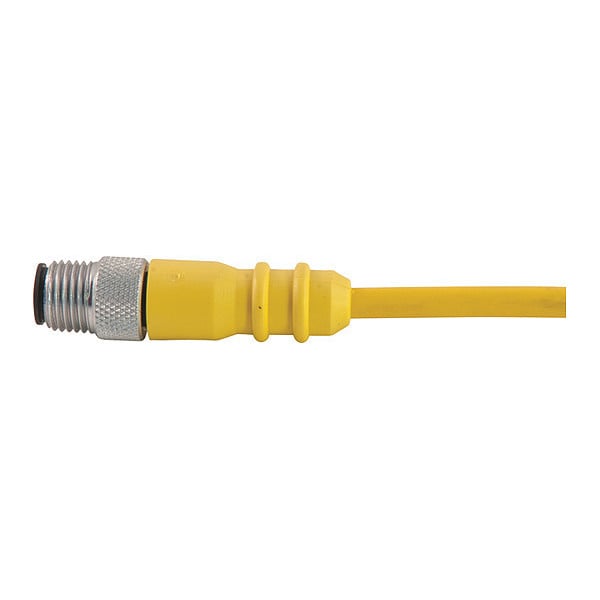

Remke Cordset, Dual Key, PVC, Male, 2 Pole, 20 ft. 202E0200G - main

Cordset, Dual Key, PVC, Male, 2 Pole, 20 ft.

  • Mfr # 202E0200G

  • Zoro # G7207827

product price: $31.39
/ea
Sold in multiples of 3 for $94.17

Key Features

IP Rating
IP67
Body Material
PVC
NEMA Rating
6P
Contact Material
Brass, Gold Plated Over Nickel"
Connector Style
MicroLink Dual Key
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
202E0200G
Zoro #
G7207827
UPC #
-
Country of Origin
United States

Dimensions

Length (in)
2.02
Cable Length (ft)
20
Cable Jacket Outer Diameter (in)
0.23
Width (in)
0.57

Details

Item
Cordset,Dual Key,PVC,Male,2 Pole,20 ft.
IP Rating
IP67
Body Material
PVC
NEMA Rating
6P
Contact Material
Brass, Gold Plated Over Nickel"
Connector Style
MicroLink Dual Key
Coupling Nut Plating
Clear Anodized
Insert Material
Nylon
Wiring Color Code
Auto CC
Poles
2
Maximum Operating Temperature (C)
105
Cable Strand
26 X #36
Cable Jacket Color
Yellow
Voltage Rating (DC)
300
Current Rating (amps)
4
Wire Gauge
22 AWG
Minimum Operating Temperature (C)
-20
Conductor Color 1
Brown
Voltage Rating (AC)
250
Minimum Operating Temperature (F)
-4
Maximum Operating Temperature (F)
221
Cable Code
Auto
Thread 1
1/2-20 UNF
Contact Carrier Material
Nylon
Tab Info
Knockout Dim,Coupling Nut Mtl,CRT,ROHS,Cable Jacket Mtl,Cable Cross,TL APP,IP Ratings
CSA Specification
E165657
O-Ring Material
Nitrile Rubber
cRU Specification
E165657
Contact Resistance (Micro Ohms)
5
Cable Jacket Material
PVC
Cordset Configuration
Straight
Conductor Color 2
Blue
Coupling Nut Material
Aluminum

Description

Cordset,Dual Key,PVC,Male,2 Pole,20 ft.
