  6. Cordset, Single Key, PVC, F, 5 Pole, 16.4 ft.

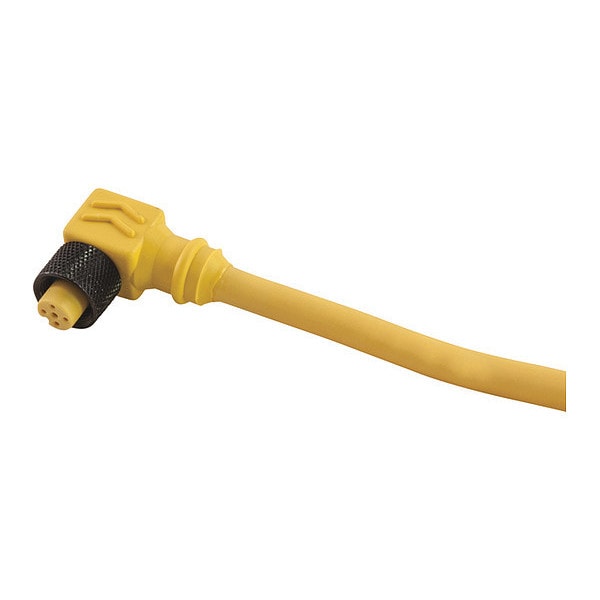

Remke Cordset, Single Key, PVC, F, 5 Pole, 16.4 ft. 305C0164H - main

Cordset, Single Key, PVC, F, 5 Pole, 16.4 ft.

  • Mfr # 305C0164H

  • Zoro # G7221632

product price:  $65.49
/ea
Sold in multiples of 2 for $130.98

Key Features

IP Rating
IP67
Body Material
PVC
NEMA Rating
6P
Contact Material
Brass, Gold Plated Over Nickel"
Maximum Operating Temperature (F)
221
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
305C0164H
Zoro #
G7221632
UPC #
-
Country of Origin
United States

Dimensions

Cable Length (ft)
16.4
Length (in)
1.07
Width (in)
0.57
Height (in)
1.26
Cable Jacket Outer Diameter (in)
0.26

Details

Item
Cordset,Single Key,PVC,F,5 Pole,16.4 ft.
IP Rating
IP67
Body Material
PVC
NEMA Rating
6P
Contact Material
Brass, Gold Plated Over Nickel"
Maximum Operating Temperature (F)
221
Voltage Rating (AC)
250
Tab Info
TL APP,Knockout Dim,IP Ratings,CRT,ROHS,Cable Cross,Coupling Nut Mtl,Cable Jacket Mtl
Poles
5
CSA Specification
E165657
Cable Jacket Material
PVC
Connector Style
MicroLink Single Key
Conductor Color 5
Gray
Coupling Nut Plating
Black Anodized
Conductor Color 4
Black
Cordset Configuration
90 Degree
Cable Strand
26 X#36
Minimum Operating Temperature (F)
-4
Coupling Nut Material
Aluminum
Minimum Operating Temperature (C)
-20
Contact Resistance (Micro Ohms)
5
Cable Jacket Color
Yellow
Current Rating (amps)
4
Conductor Color 1
Brown
Wiring Color Code
Euro CC
Maximum Operating Temperature (C)
105
Thread 1
M12X1
Contact Carrier Material
Nylon
Wire Gauge
22 AWG
Cable Code
Euro
cRU Specification
E165657
Voltage Rating (DC)
300
Conductor Color 3
Blue
Conductor Color 2
White
Insert Material
Nylon
O-Ring Material
Nitrile Rubber

Description

Cordset,Single Key,PVC,F,5 Pole,16.4 ft.
