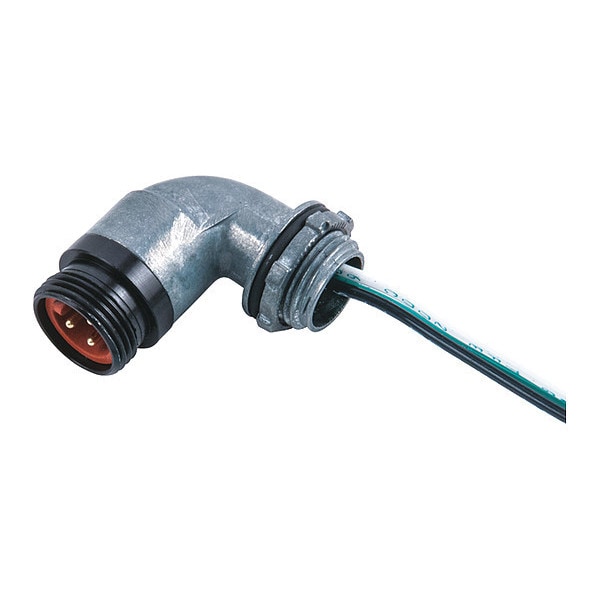

Receptacle, Mini, Hi-Temp, Male, 3 P, 1 ft.

  • Mfr # 103U0010MHT

  • Zoro # G7214230

product price:
$
29.99
/ea
Sold in multiples of 3 for $89.97

Key Features

Wire Size
16 AWG
IP Rating
IP67
Max. Amps
13 A
Maximum Operating Temperature
356 Degrees F
Number of Conductors
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
103U0010MHT
Zoro #
G7214230
UPC #
-
Country of Origin
United States
Item
Mini Link Receptacle
IP Rating
IP67
Max. Amps
13 A
Maximum Operating Temperature
356 Degrees F
Number of Conductors
3
Features
Multiple Hole Bushings in a Variety Of Hole Combinations; Slit Bushings; Embedded O-Rings; Nickel Coated then Gold Plated Contacts for Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped onto Wires Assuring Secure Terminations, Precision Machined Contacts for Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts
NEMA Rating
6P
Max. Voltage
600VAC/DC
Color
Green, Black, White
Temp. Range
-58 Degrees to 356 Degrees F
For Use With
12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls
Conductor Color 1
Green
Voltage Rating (AC)
600
Contact Material
Brass, Gold Plated Over Nickel"
Receptacle Configuration
Male 90 Deg
Conductor Color 2
Black
Connector Style
MiniLink
Cable Code
Auto
Receptacle Lead Jacket Material
Silicone
Thread 1
7/8-16 UNS
Shell Material
Machined Aluminum
Insert Material
Silicone
Voltage Rating (DC)
600
Poles
3
Conductor Color 3
White
Minimum Operating Temperature (F)
-58
Thread 2
1/2-14 NPT
Cable Strand
26 X #30
Shell Plating
Black Anodized
O-Ring Material
Viton
Wiring Color Code
Auto CC
Contact Carrier Material
Silicone
Locknut Material
Steel
Contact Resistance (Micro Ohms)
5
Contact Sleeve
Stainless Steel

Description

Receptacle,Mini,Hi-Temp,Male,3 P,1 ft.
