- MFR #
- 110P0010M
- Zoro #
- G7216960
- UPC #
- -
- Country of Origin
- United States
- Item

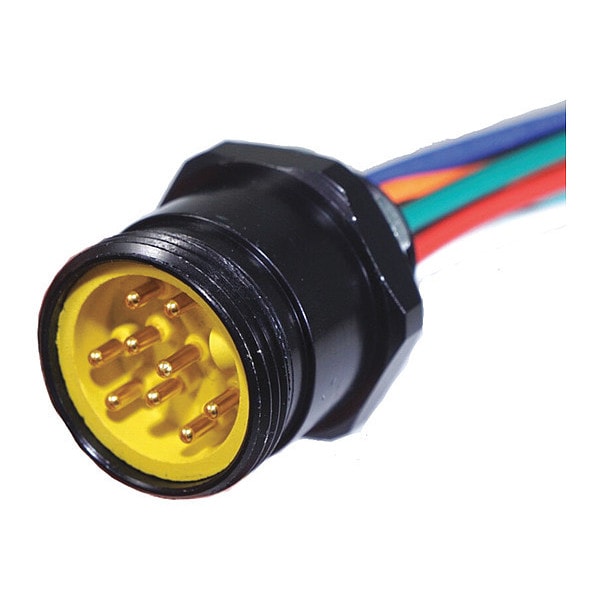

- Mini Link Receptacle
- IP Rating
- IP67
- Max. Amps
- 7 A
- Maximum Operating Temperature
- 221 Degrees F
- For Use With
- 12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls
- Features
Multiple Hole Bushings in a Variety Of Hole Combinations; Slit Bushings; Embedded O-Rings; Nickel Coated then Gold Plated Contacts for Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped onto Wires Assuring Secure Terminations, Precision Machined Contacts for Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts
- Number of Conductors
- 10
- NEMA Rating
- 6P
- Temp. Range
- -4 Degrees to 221 Degrees F
- Max. Voltage
- 600VAC/DC
- Color
- Orange, Blue, White/Black Tracer, Red/Black Tracer, Green/Black Tracer, Orange/Black Tracer, Red, Green, Black, White
- Insert Material
- PVC
- cRU Specification
- E165657
- Voltage Rating (DC)
- 600
- Contact Sleeve
- Stainless Steel
- Conductor Color 7
- Red
- Receptacle Lead Jacket Material
- PVC
- Conductor Color 6
- Orange/Black Tracer
- Receptacle Configuration
- Male Straight
- Contact Carrier Material
- PVC
- Shell Plating
- Black Anodized
- Conductor Color 4
- Red/Black Tracer
- Voltage Rating (AC)
- 600
- Thread 2
- 1/2-14 NPT
- Cable Strand
- 26 X #30
- Thread 1
- 1-8 UN
- Conductor Color 3
- White/Black Tracer
- Conductor Color 1
- Orange
- Conductor Color 9
- Black
- Contact Resistance (Micro Ohms)
- 5
- Conductor Color 10
- White
- Connector Style
- MiniLink
- Cable Code
- Auto
- Conductor Color 5
- Green/Black Tracer
- Minimum Operating Temperature (F)
- -4
- Poles
- 10
- Shell Material
- Machined Aluminum
- Contact Material
- Brass, Gold Plated Over Nickel"
- CSA Specification
- E165657
- O-Ring Material
- Viton
- Wiring Color Code
- Auto CC
- Conductor Color 2
- Blue
- Locknut Material
- Steel
- Conductor Color 8
- Green
