Remke

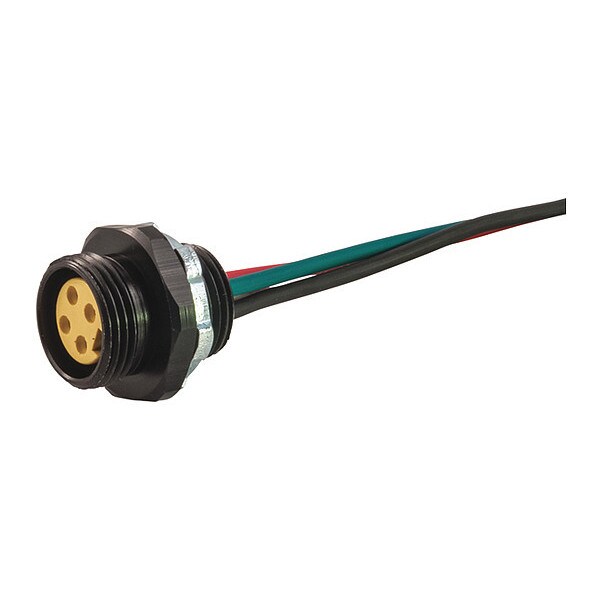

Receptacle, MiniFemale, 5 Pole, 1 ft.

product price: $18.59
/ea
Sold in multiples of 3 for $55.77
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Voltage 600VAC/DC
  • Wire Size 16 AWG
  • Color White, Red, Green, Orange, Black
  • IP Rating IP67
  • Max. Amps 8A
See all product information

Product Information

Dimensions

Wire Size 16 AWG
Maximum Knock Out Size (in) 0.906
Receptacle Lead Length 1
Length (in) 1.07

Details

Item Mini Link Receptacle
Max. Voltage 600VAC/DC
Color White, Red, Green, Orange, Black
IP Rating IP67
Max. Amps 8A
Number of Conductors 5
Features Nickel Coated Then Gold Plated Contacts For Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped Onto Wires Assuring Secure Terminations; Precision Machined Contacts For Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts
NEMA Rating 6P
Temp. Range -4 Degrees to 221 Degrees F
For Use With 12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls
Maximum Operating Temperature (F) 221
Receptacle Lead Jacket Material PVC
Voltage Rating (AC) 600
Cable Code Auto
cRU Specification E165657
O-Ring Material Viton
Current Rating (amps) 8
Contact Carrier Material PVC
Poles 5
Locknut Material Steel
Shell Plating Black Anodized
Conductor Color 5 Black
Receptacle Configuration Female Straight
Contact Sleeve Stainless Steel
Shell Material Machined Aluminum
Conductor Color 2 Red
Cable Strand 26 X #30
Conductor Color 1 White
Conductor Color 3 Green
Contact Resistance (Micro Ohms) 5
Thread 1 7/8-16 UNS
Minimum Operating Temperature (F) -4
Insert Material PVC
Contact Material Brass, Gold Plated Over Nickel"
Wiring Color Code Auto CC
Wire Gauge 16 AWG
Thread 2 1/2-14 NPT
Voltage Rating (DC) 600
Conductor Color 4 Orange
Connector Style MiniLink
CSA Specification E165657

Description

Receptacle,MiniFemale,5 Pole,1 ft.
