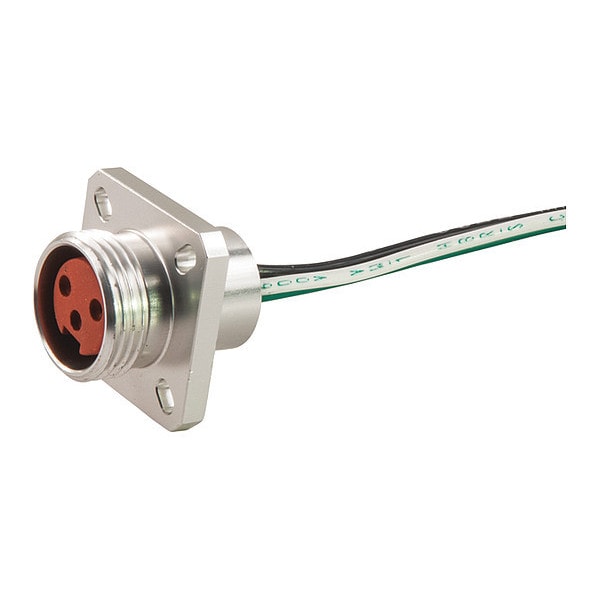

Recptacl, Mini, Hi-Temp, F, Flange, 3 P, 1 ft.

Name: Recptacl, Mini, Hi-Temp, F, Flange, 3 P, 1 ft.
Brand: Remke
SKU: G7214109
Price: 108.70 USD
Availability: InStock

54.35

/ea

Sold in multiples of 2 for $108.70

Wire Size

16 AWG

IP Rating

IP67

Max. Amps

13 A

Maximum Operating Temperature

356 Degrees F

Number of Conductors

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Mini Link Receptacle
IP Rating: IP67
Max. Amps: 13 A
Maximum Operating Temperature: 356 Degrees F
Number of Conductors: 3
Features: Nickel Coated Then Gold Plated Contacts For Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped Onto Wires Assuring Secure Terminations; Precision Machined Contacts For Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts
NEMA Rating: 6P
Temp. Range: -58 Degrees to 356 Degrees F
Color: Green, Black, White
Max. Voltage: 600VAC/DC
For Use With: 12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls
Minimum Operating Temperature (F): -58
Cable Strand: 26 X #30
Connector Style: MiniLink
Wiring Color Code: Auto CC
Conductor Color 1: Green
Insert Material: Silicone
Shell Plating: Black Anodized
Contact Sleeve: Stainless Steel
Contact Resistance (Micro Ohms): 5
Shell Material: Machined Aluminum
Contact Material: Brass, Gold Plated Over Nickel"
Voltage Rating (DC): 600
Contact Carrier Material: Silicone
Conductor Color 3: White
O-Ring Material: Viton
Conductor Color 2: Black
Cable Code: Auto
Voltage Rating (AC): 600
Thread 1: 7/8-16 UNS
Receptacle Configuration: Female Flange Mount
Receptacle Lead Jacket Material: Silicone
Poles: 3

Recptacl,Mini,Hi-Temp,F,Flange,3 P,1 ft.
