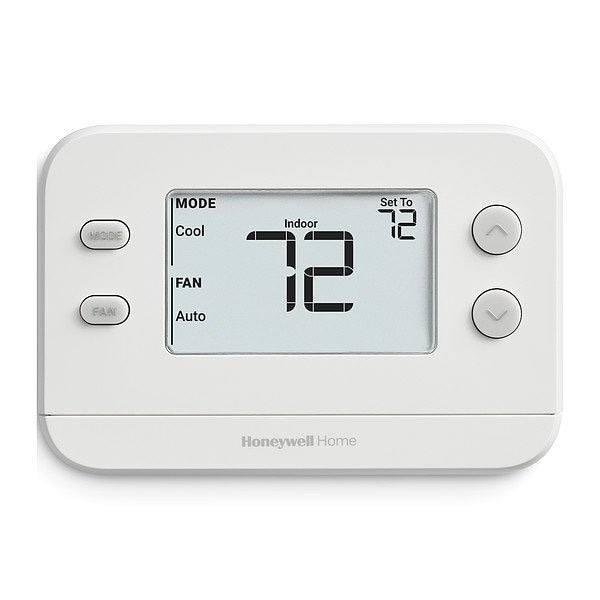

Thermostat

Mfr # TH1320U4002/U
Zoro # G222784822

56.89

Key Features

Includes Positive Off

Yes

System Settings

Heat-Off-Cool-Auto-Emergency Heat

Battery Type

AA Alkaline

Operating Humidity Range

5% to 90% RH

Number of Cooling Stages - Heat Pump System

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: TH1320U4002/U
Zoro #: G222784822
UPC #: 194159017429
Country of Origin: Mexico

Dimensions

Digit Size: Large
Overall Depth: 1 3/16 in
Overall Height: 3 7/16 in
Overall Width: 5 1/8 in

Details

Includes Positive Off: Yes
System Settings: Heat-Off-Cool-Auto-Emergency Heat
Battery Type: AA Alkaline
Operating Humidity Range: 5% to 90% RH
Number of Cooling Stages - Heat Pump System: 2
Output Signal: 24V AC
Humidification Control: No
Number of Heating Stages - Heat Pump System: 3
Control Type: Push Button
Application: Heat and Cool
Display Type: Digital
Temperature Differential: +/-1 Degrees F
Voltage: 24V AC
Temperature Scale: Fahrenheit/Celsius
Number of Heating Stages - Conventional System: 2
Temperature Control Range: 50 Degrees to 99 Degrees F (Cool), 32 Degrees to 90 Degrees F (Heat)
Stages: Up to 3 Heat/2 Cool Heat Pump Systems; Up to 2 Heat/2 Cool Conventional Systems
Programming Capability: Not Programmable
Terminal Designations: C, E, G, K, L/A, O/B, R, RC, S, W, W2-AUX, Y, Y2
Minimum Operating Temperature: 32 Degrees F
Electrical Connection Type: Hardwired
Minimum Operating Humidity: 5 %
Operating Temperature Range: 32 Degrees to 120 Degrees F
Product Type: Non-Programmable Thermostat
Maximum Operating Temperature: 120 Degrees F
Thermostat Type: Non-Programmable Digital
Maximum Operating Humidity: 90 %
Shape: Rectangle
Maximum Control Temperature: 99 Degrees F
Number of Cooling Stages - Conventional System: 2
Dehumidification Control: No
Temperature Sensitivity: +/-1 Degrees F
Housing Color: White
Fan Settings: Auto
Backlit Type: Always On
Filter Change Reminder: Yes
Mounting Direction: Horzontal
Item: Low Voltage Non-Programmable Digital Thermostat
Frequency: 60 Hz
Includes: Decorative Cover Plate with J-Box Adaptor, Mounting Hardware, UWP Mounting Plate
Changeover Type: Automatic and Manual
Compatible System Type: 24V AC Heat and Cool Systems, Heat Pumps with Auxiliary Heat, Steam/Radiant Hot Water Systems

Description

Low Voltage Non-Programmable Digital Thermostat, Heat and Cool, Automatic and Manual, Compatible System Type 24V AC Heat and Cool Systems, Heat Pumps with Auxiliary Heat, Steam/Radiant Hot Water Systems, Push Button, Dehumidification Control No, Digit Size Large, Digital, Fan Settings Auto, Humidification Control No, Includes Positive Off Yes, Maximum Control Temperature 99 Degrees F

Restrictions

This item has been restricted from sale in the following states: CO
