  11. 5 Micron, 2-1/2" Bowl Dia. O.D., 25" H, Deionizer

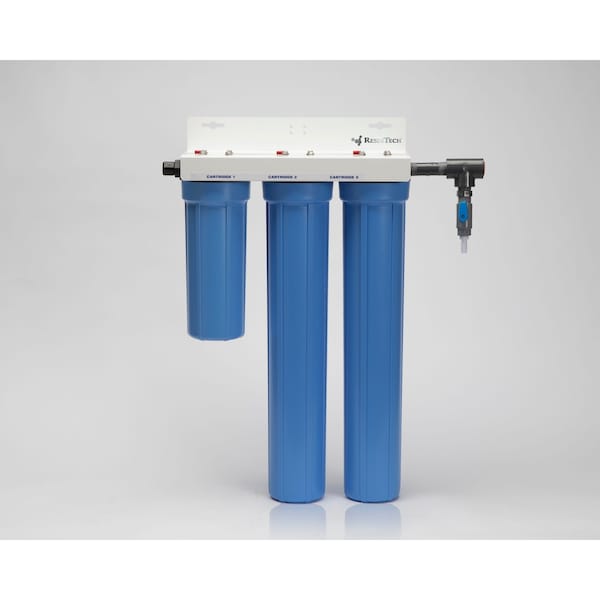

Resintech 5 Micron, 2-1/2" Bowl Dia. O.D., 25" H, Deionizer HYS-122-S-HP - main

5 Micron, 2-1/2" Bowl Dia. O.D., 25" H, Deionizer

  • Mfr # HYS-122-S-HP

  • Zoro # G5079724

product price: $937.99
/ea
Free Shipping & Returns

Key Features

Application
Battery Water Filling, General deionization, glassware rinse, Glassware Washer, Humidification, Hydrogen generator, Sterilizers
Flow Rate
1.9 lpm
For Use With
Non-Stainless Steel Piping Systems
Height
25"
Max. Pressure
100 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HYS-122-S-HP
Zoro #
G5079724
UPC #
-
Country of Origin
United States

Dimensions

Height
25"
Outside Dia.
2-1/2" Bowl Dia.
Length
20"
Outlet Pipe Size
3/8 in Hose Barb
Inlet Pipe Size
3/8 in OD Tube

Details

Application
Battery Water Filling, General deionization, glassware rinse, Glassware Washer, Humidification, Hydrogen generator, Sterilizers
Flow Rate
1.9 lpm
For Use With
Non-Stainless Steel Piping Systems
Max. Pressure
100 psig
Max. Temp.
100 Degrees F
Microns
5
Service Life
1800 gn.
Color
Blue
Housing Material
Polypropylene
Material
Carbon (Filter Media)
Max. Inlet Pressure Range
100 psi
Water Type
Type II
Voltage
120V/60Hz
Item
Deionizer
Max. Output Flow
1.9 lpm
Inlet Water Temp. Range
100 Degrees F
Purified Water Resistivity
1 to 10 megaohm
Includes
2 1/2 in x 10 in Carbon Cartridge, (2) 2 1/2 in x 20 in High Purity DI Cartridges, 200 k Ohmscm DI Light, 3/4 in Fitting and Tubing Kit, Preassembled Housing, Housing Wrench
Particulate Removal
5 micron
Product Type
Deionizer
Feed Water Connector Type
3/8" OD
Operating Pressure - Minimum
10 psi
Feed Water Source
Tap Water
Feed Water Pressure - Maximum
90 psi
Feed Water Monitoring
No
Feed Water Pressure - Minimum
20 psi
Purified Water Conductivity
0.1 uS/cm
Operating Pressure - Maximum
100 psi
Resistivity
Less Than 10 M Ohms/cm
Impurities Removed
Ions
Purified Water Type
Type II Water

Description

Deionizer, Inlet Pipe Size 3/8 in OD Tube, Outlet Pipe Size 3/8 in Hose Barb, Max. Inlet Pressure Range 100 psi, Purified Water Resistivity 1 to 10 megaohm, Water Type Type II, Max. Output Flow 1.9 lpm, Voltage 120V/60Hz, Inlet Water Temp. Range 100 Degrees F, Particulate Removal 5 micron, Application Battery Water Filling, General deionization, glassware rinse, Glassware Washer, Humidification, Hydrogen generator, Sterilizers
