  11. 5 Micron, 4-1/5" Bowl Dia. O.D., 26" H, Deionizer

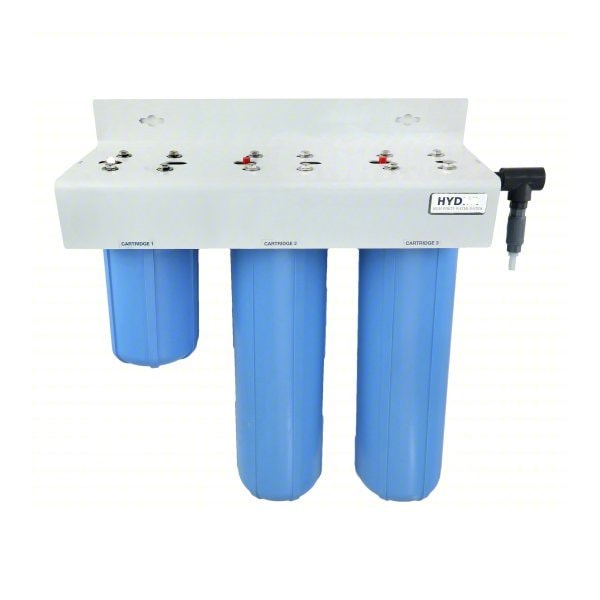

Resintech 5 Micron, 4-1/5" Bowl Dia. O.D., 26" H, Deionizer HYS-122-B-HP - main

5 Micron, 4-1/5" Bowl Dia. O.D., 26" H, Deionizer

  • Mfr # HYS-122-B-HP

  • Zoro # G5081982

product price: $1,671.99
/ea
Free Shipping & Returns

Key Features

Application
Battery Water Filling, General deionization, glassware rinse, Glassware Washer, Humidification, Hydrogen generator, Sterilizers
Water Type
Type II
Flow Rate
4.7 lpm
Max. Output Flow
4.7 lpm
For Use With
Non-Stainless Steel Piping Systems
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HYS-122-B-HP
Zoro #
G5081982
UPC #
-
Country of Origin
United States

Dimensions

Height
26"
Outside Dia.
4-1/5" Bowl Dia.
Length
29"
Outlet Pipe Size
3/8 in Hose Barb
Inlet Pipe Size
3/8 in OD Tube

Details

Application
Battery Water Filling, General deionization, glassware rinse, Glassware Washer, Humidification, Hydrogen generator, Sterilizers
Water Type
Type II
Item
Deionizer
Flow Rate
4.7 lpm
Max. Output Flow
4.7 lpm
For Use With
Non-Stainless Steel Piping Systems
Purified Water Resistivity
1 to 10 megaohm
Max. Pressure
100 psig
Max. Temp.
100 Degrees F
Microns
5
Service Life
4760 gn.
Color
Blue
Housing Material
Polypropylene
Material
Carbon (Filter Media)
Voltage
120V/60Hz
Includes
2 1/2 in x 10 in Carbon Cartridge, (2) 2 1/2 in x 20 in High Purity DI Cartridges, 200 k Ohmscm DI Light, 3/4 in Fitting and Tubing Kit, Preassembled Housing, Housing Wrench
Particulate Removal
25 micron
Inlet Water Temp. Range
100 Degrees F
Max. Inlet Pressure Range
100 psi
Product Type
Deionizer
Purified Water Type
Type II Water
Feed Water Source
Tap Water
Resistivity
Less Than 10 M Ohms/cm
Purified Water Conductivity
0.1 uS/cm
Operating Pressure - Maximum
80 psi
Operating Pressure - Minimum
10 psi
Feed Water Pressure - Maximum
90 psi
Feed Water Monitoring
No
Feed Water Connector Type
3/8" OD
Feed Water Pressure - Minimum
20 psi
Impurities Removed
Ions

Description

Deionizer, Inlet Pipe Size 3/8 in OD Tube, Outlet Pipe Size 3/8 in Hose Barb, Max. Inlet Pressure Range 100 psi, Purified Water Resistivity 1 to 10 megaohm, Water Type Type II, Max. Output Flow 4.7 lpm, Voltage 120V/60Hz, Inlet Water Temp. Range 100 Degrees F, Particulate Removal 25 micron, Application Battery Water Filling, General deionization, glassware rinse, Glassware Washer, Humidification, Hydrogen generator, Sterilizers
