Nuts are a basic piece of hardware that, when coupled with a compatible bolt, provide secure fastening in a variety of applications. With the wide array of different nuts available, determining exactly which nut to use for an application can sometimes be tough. This guide will review a broad range of nuts and some applications in which they're most commonly used.

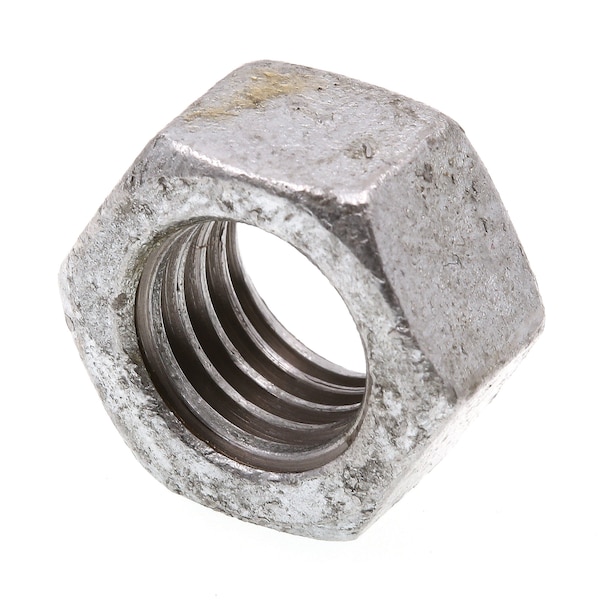

Hex Finish Nuts
Hex Finish Nuts are used for fastening to a hex cap screw, socket cap screw, or bolt. As the name indicates, these nuts are hex shaped with internal threads and are fastened by using a wrench.
Heavy Hex Nuts
Same as a hex finish nut but thicker, larger, and heavier.
Hex Jam Nuts
Hex Jam Nuts are frequently used as a locknut, where it is "jammed" up against a standard nut to lock the two in place. It is also used when a nut needs to be locked in place without clamping to another object. Hex jam nuts are a low profile nut, usually half as tall as a standard nut.
Hex Machine Nuts
These are smaller than a hex jam or hex finish nut and are used with machine screws less than 1/4" diameter.
Structural Heavy Hex Nuts
Similar to hex finish nuts, structural heavy hex nuts are thicker and much stronger. They're used in steel-to-steel structural connections.

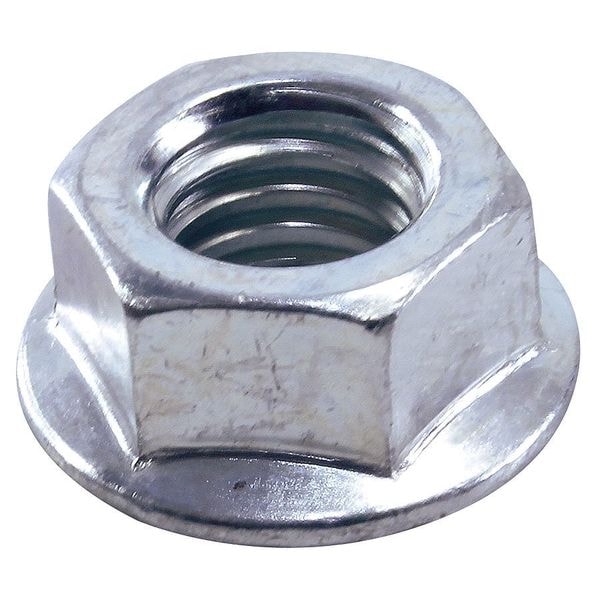

Flange Serrated Nuts
These nuts feature a wide flange which acts as an integrated washer. The serrated flange does not spin or move and is designed to evenly distribute the pressure of the nut over the part being secured. This creates a locking action which prevents the flange nut from loosening.

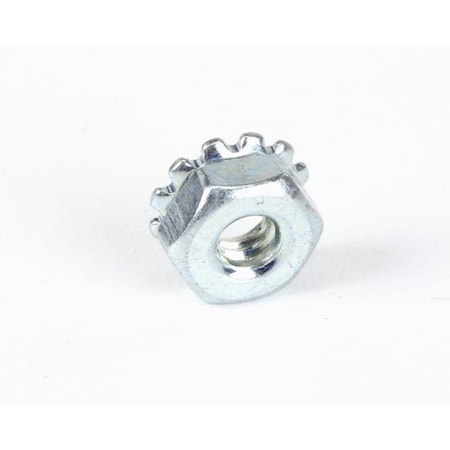

Keps-K Lock Nuts
Designed to make parts assembly more quick and convenient, Keps-K lock nuts have an attached free-spinning lock washer. They're also commonly identified as a Keps nut, a K-nut or a washer nut.
Nylon Hex Jam Nuts
Featuring a low profile, these nuts are internally threaded with a nylon insert designed to prevent loosening from vibration. Additionally, internal cross threads stop the nut from backing off the fastener.
Nylon Insert Lock Nuts
Similar to nylon hex jam nuts but with a taller profile.
Prevailing Torque Lock Nuts
These nuts feature chamfered corners and a conical top. This distortion in the top threads is designed to resist loosening from vibration. Commonly known as Stover nuts or one-way nuts since they are installed only one way—conical top up—they are often used in high-temperature applications.
Cap Nuts
Also known as an acorn cap nut, this nut is named for its shape. The domed top of the nut is designed to prevent contact with the external thread.

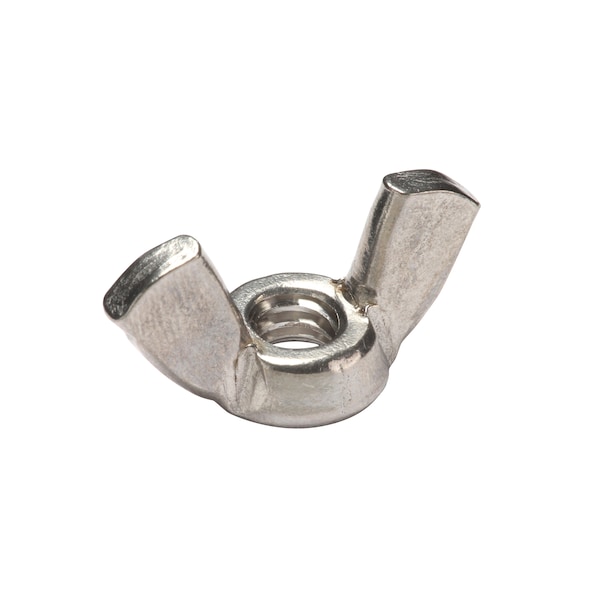

Wing Nuts
With wings on opposite sides of the body, wing nuts allow for manual turning and installation. Frequently used where the nut needs to be removed and retightened often.

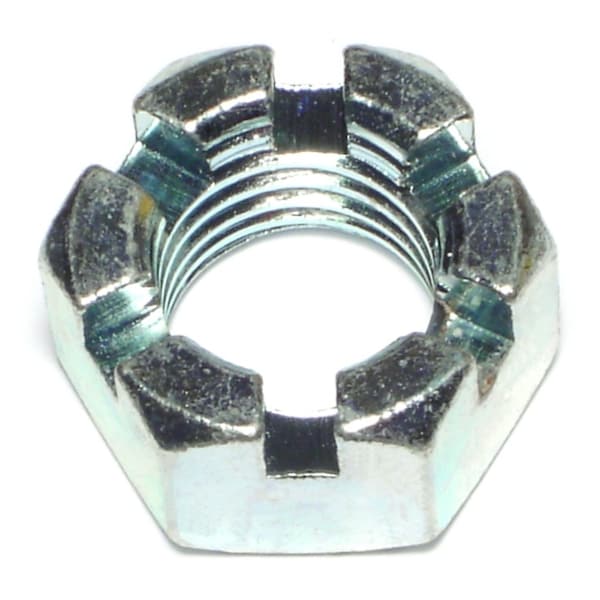

Castle Nuts
A nut with slots cut into the top, castle nuts are for use with cotter pins to prevent loosening They're often used for low-torque applications such as holding a wheel bearing in place.
Slotted Hex Nuts
Similar to castle nuts, slotted hex nuts are also designed to be used with cotter pins to create a locking mechanism. They feature a lower hex profile than castle nuts which can make them a better option where space may be an issue for your application.

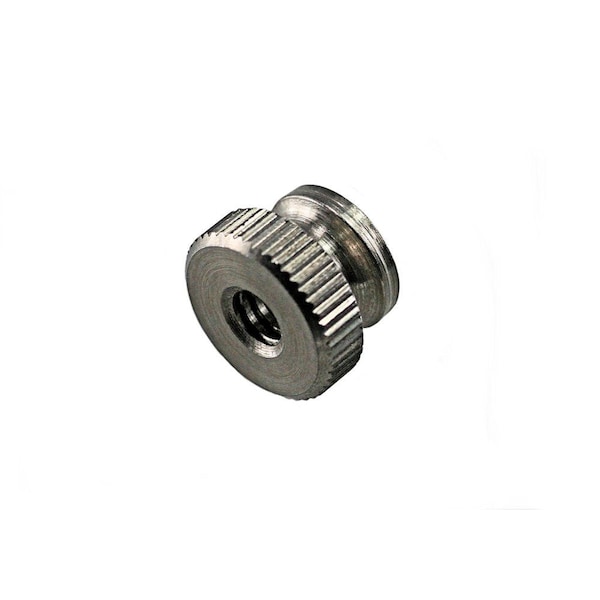

Knurled Thumb Nuts
These nuts feature a knurled outer surface instead of a hex design. This allows for tightening the nut by hand. They're frequently used in decorative finishes or applications.

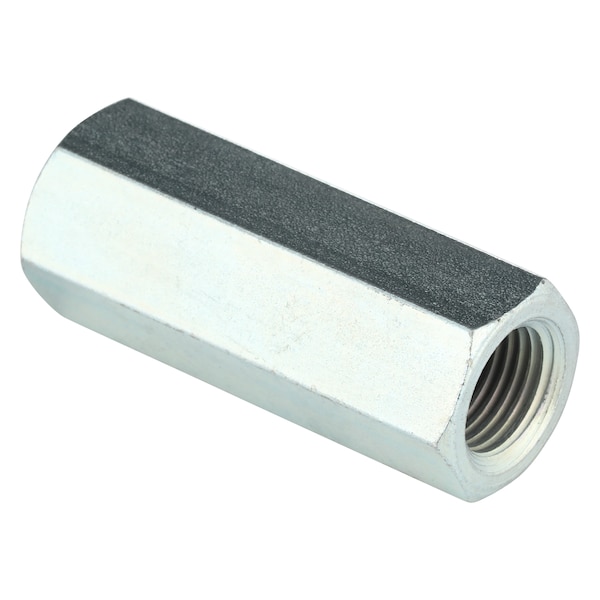

Coupling Nuts
This elongated, threaded, hex-shaped fastener is used for joining two male threads, most frequently a threaded rod. The hex shape allows for tightening or loosening with a wrench.

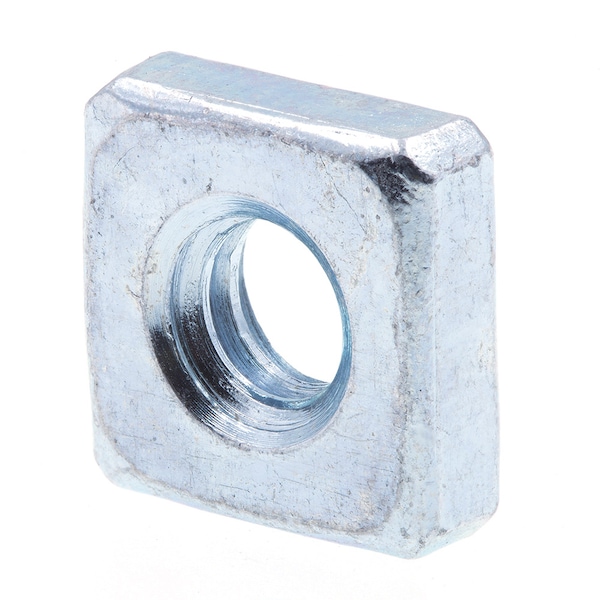

Square Nuts
Frequently matched with square-head bolts, these four-sided nuts are available with either a flat or beveled top. Square nuts provide a greater surface contact area, making them more resistant to loosening.
Tri-Groove Nuts
These specialty nuts are installed using a unique Tri-Groove socket designed to grip the indentations along the outside of the fastener. This allows for the nut to be turned along the threads. They're commonly used with driver-less fasteners such as concrete anchors and carriage bolts to ensure a tamper-proof, secure assembly.
T-Nuts
These nuts are frequently used to fasten wood, composite, or particle board with the top surface countersunk to leave a flat, flush surface. T-nuts feature 3 or 4 prongs which sink into the material surface for more secure fastening.
Break Away or Shear Nuts
Shear nuts are conical-shaped nuts with a hexagonal gripping point. They are designed with an intentional flaw to allow for the hex head to snap off once the maximum torque is reached. This leaves behind a protective cone nut that is tamper-resistant and can't be easily removed since there is now nothing remaining to grip.
