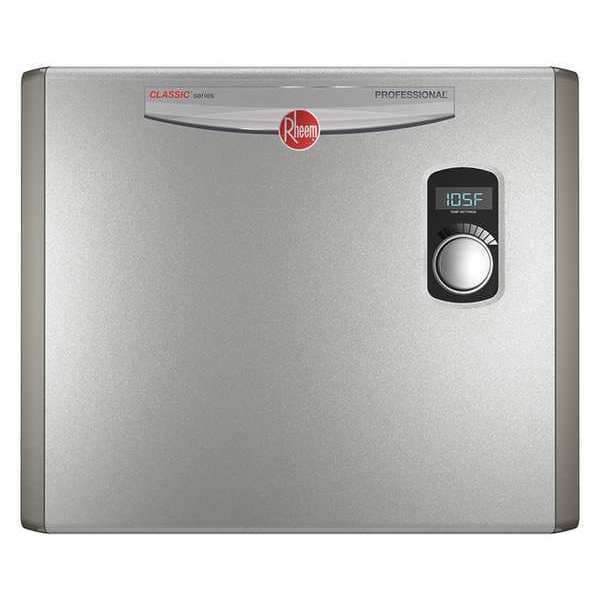

Both Electric Tankless Water Heater, General Purpose, 59 Degrees to 140 Degrees F, 208/240 VAC

  • Mfr # RTEX-36

  • Zoro # G8038847


product price:  $1,114.99
/ea
Free Shipping & Returns

Key Features

Water Heater Design
Whole House
Voltage - Water Heaters
208/240
Amps - Water Heaters
150
Phase - Water Heaters
1
Temp. Range - Water Heaters
59 Degrees to 140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RTEX-36
Zoro #
G8038847
UPC #
020352683089
Country of Origin
China

Dimensions

Height to Top of Vent Connection
18.25"
Wire Size
8 AWG
Depth
3-1/2"
Height to Top of Heater
18.25"
Height
18-1/4"
Width
21-5/8"
Overall Depth
3.5 in
Overall Height
18.25 in
Overall Width
21.63 in
Manufacturer Warranty Length
1 yr Limited Parts, 5 yr Heating Chamber
Cold Inlet Size
3/4 in

Details

Water Heater Design
Whole House
Voltage - Water Heaters
208/240
Watts - Water Heaters
36,000
Amps - Water Heaters
150
Phase - Water Heaters
1
Temp. Range - Water Heaters
59 Degrees to 140 Degrees F
Min. Flow Activation
0.30 gpm
Water Heater Application
General Purpose
Commercial / Residential
Both
Item
Electric Tankless Water Heater
Mounting
Wall
Phase
single
Water Connection
3/4" NPT
Default Temperature
120 Degrees F
Vent Type
Tankless Electric
Temp. Rise @ 2.5 GPM
98 Degrees F
Temp. Rise @ 2.5 GPM - Water Heaters
98 Degrees F
Residential / Commercial
Both
Fuel Type
Electric
Temp. Rise @ 6.0 GPM
41 Degrees F
Features
Endless Hot Water, Replaceable Heating Element, Adjustable Digital Temperature Display
Temp. Rise @ 4.0 GPM
62 Degrees F
Pressure Range
25 to 150 psi
Standards
cETLus Intertek, CSA C22.2 No.64, No Lead Compliant, NSF/ANSI 372, UL 499, WQA Certified
Temp. Range
59 Degrees to 140 Degrees F
Tank Capacity
36 gal.
Max. Flow Rate
7 gpm
Elements
Lead-Free Replaceable Cartridge Insert
Amps AC
150
Voltage
208/240 VAC
Item - Water Heaters
Electric Tankless Water Heater
Water Connection Location
Bottom
Minimum Water Pressure
25 psi
Maximum Water Pressure
150 psi
Cord Conductor Gauge
8 AWG Wire
Current
150 A
Control Type
Dial, Digital Display with Keypad
Adjustable Thermostat
Yes
Element Material
Copper
Operating Voltage
240V AC
Mounting Type
Wall Mounting
Environment
Indoor
Market
Residential
Temperature Rise @ Flow
40 Degrees F @ 3 gpm, 50 Degrees F @ 4 gpm, 60 Degrees F @ 5 gpm, 70 Degrees F @ 5 gpm
Minimum Delivered Temperature
80 Degrees F
Minimum Flow Activation
0.3 gpm
Maximum Flow Rate
8 gpm
Power Consumption
36,000 W
Maximum Delivered Temperature
140 Degrees F

Description

Electric Tankless Water Heater, Operating Voltage 240V AC, Phase Single, Cold Inlet Size 3/4 in, Maximum Flow Rate 8 gpm, Minimum Flow Activation 0.3 gpm, Overall Depth 3.5 in, Overall Height 18.25 in, Overall Width 21.63 in, Power Consumption 36,000 W, Maximum Delivered Temperature 140 Degrees F, Minimum Delivered Temperature 80 Degrees F, Adjustable Thermostat Yes, Current 150 A, Environment Indoor, Market Residential, Control Type Dial, Digital Display with Keypad
