  5. 85 gal Commercial Electric Water Heater, 208V, Single, Three Phase 57.7 in H

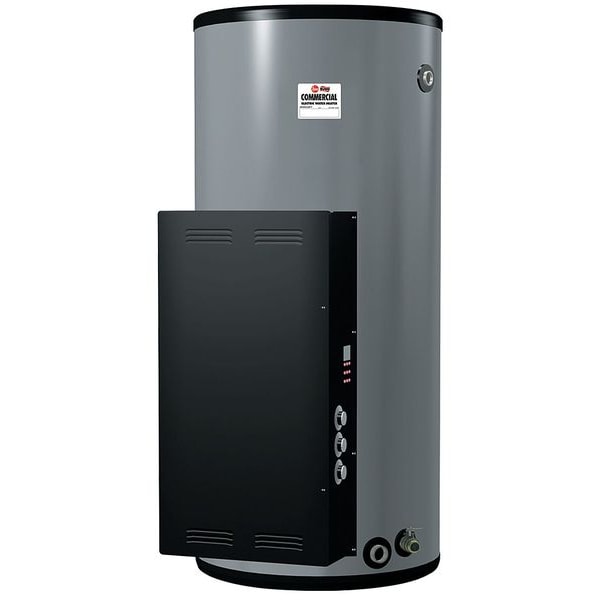

Rheem-Ruud 85 gal Commercial Electric Water Heater, 208V, Single, Three Phase 57.7 in H ES85-54-G - main
Shop RHEEM-RUUD

85 gal Commercial Electric Water Heater, 208V, Single, Three Phase 57.7 in H

  • Mfr # ES85-54-G

  • Zoro # G7542193

product price:  $8,995.99
/ea
Additional $230.00 delivery surcharge applies per item.
See details

Key Features

Commercial / Residential
Commercial
Water Heater Design
Whole House
Tank Capacity
85 gal
Voltage
208V
Phase
Single, Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ES85-54-G
Zoro #
G7542193
UPC #
203524447584
Country of Origin
United States

Dimensions

Overall Height
57.7 in
Jacket Dia.
28 1/4 in
Connection Size
3/4"
Overall Width
28.3 in
Overall Height - Water Heaters
57 11/16 in
Height to Cold Side Connection
4 3/4 in
Height to T and P Opening
49-1/2"
Height to Hot Side Connection
57 11/16 in
Height to Top of Vent Connection
57.69"
Manufacturers Warranty Length
3 yr Limited Tank, 1 yr Limited Parts
Height to Top of Heater
57.69"
Tank Diameter
28.25 in
Hot Outlet Size
1 1/2 in
Height to T and P Valve
49.5 in
Height to Hot Outlet
57.7 in
Height to Cold Inlet
4.8 in
Manufacturer Warranty Length
1 yr Limited Parts, 3 yr Limited Tank
Cold Inlet Size
1 1/2 in
Overall Depth
34 in

Details

Item
Electric Water Heater
Commercial / Residential
Commercial
Water Heater Design
Whole House
Tank Capacity
85 gal
Voltage
208V
Phase
Single, Three
Total Watts
54,000 W
Connection Location
Cold Side/Hot Top
Includes
Brass Drain Valve, Factory-Installed T&P Valve
Recovery @ 130 F Rise
172 gph
Recovery @ 50 F Rise
447 gph
Compliance
UL Certified; UL Standard 1453; NC Code Compliant; DOE Test Procedures; ASHRAE Standard
Fuel Type
Electric
Recovery @ 110 F Rise
203 gph
Amps AC
150 A
Tank Capacity - Plumbing
85.0 gal
Voltage - Water Heaters
208
Recovery @ 140 F Rise
160 gph
Industry Type
Commercial
Max. Pressure
150 psi
Features
Heavy Duty; Long Life Tank Design; Automatic Temperature Control; 98% Thermal Efficiency; Minimal Standby Heat Loss
Recovery @ 100 F Rise
223 gph
Application
Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood
Number of Elements
9
Residential / Commercial
Commercial
Vent Type
Standard
Item - Water Heaters
Electric Water Heater
Phase - Water Heaters
3
Recovery @ 120 F Rise
186 gph
Temp. Range
120 Degrees to 180 Degrees F
Water Connection
1-1/2 in NPT
Recovery @ 70 F Rise
319 gph
Recovery @ 90 F Rise
248.0 gph
System of Measurement
Inch
Connection Type
NPT
Standards
AHRI Compliant, CSA Certified, LWH, UL EPH Listed, UL Listed
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Equivalent BtuH
184,259 BtuH
Current
260 A
Operating Voltage
208V AC
Minimum Delivered Temperature
90 Degrees F
Maximum Water Pressure
150 psi
Market
Commercial
Maximum Delivered Temperature
190 Degrees F
Cold Inlet Type
NPT
Hot Outlet Type
NPT
Tank Insulation Material
Polyurethane
Tank Lining Material
Vitreous Glass
Power Consumption
54,000 W
Thermal Efficiency
98 %
Recovery Rate @ Rise
160 gph @ 140 Degrees F, 172 gph @ 130 Degrees F, 186 gph @ 120 Degrees F, 203 gph @ 110 Degrees F, 223 gph @ 100 Degrees F, 248 gph @ 90 Degrees F, 279 gph @ 80 Degrees F, 319 gph @ 70 Degrees F, 372 gph @ 60 Degrees F, 447 gph @ 50 Degrees F
Included Valves
Temperature and Pressure Relief
Thermostat Mounting
Surface
Maximum Recovery Flow Rate
558 gph @ 40 Degrees F
Automatic Thermostat
Yes
Element Material
Stainless Steel
Water Connection Location
Side, Top
Product Type
Electric Tank Water Heater

Description

Electric Water Heater, Operating Voltage 208V AC, Phase Single, Three, Equivalent BtuH 184,259 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 558 gph @ 40 Degrees F, Overall Height 57.7 in, Power Consumption 54,000 W, Tank Capacity 85 gal, Tank Diameter 28.25 in, Market Commercial, Number of Elements 9, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 260 A, Element Material Stainless Steel, Height to Cold Inlet 4.8 in
