Copper Cutting/Prep Machine, 1/2 to 2 In

  • Mfr # 93492
  • Zoro # G1308386
product price:
$
2,592.99
/ea
Free Shipping & Returns

Key Features

Overall Length
15.1 in
Minimum Compatible Pipe Size
1/2 in
Maximum Compatible Pipe Size
2 in
Voltage
115V AC
Includes
1 1/2 in Brush, 1 1/4 in Brush, 1 in Brush, 1/2 in Brush, 2 in Brush, 2 in Reamer Cone Assembly, 3/4 in Brush, Mountable Storage Rack, Cleaning Brush, Quick-Change Collet, Spare Cutter Wheel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
93492
Zoro #
G1308386
UPC #
095691934925
Country of Origin
Korea, Republic of

Dimensions

Overall Length
15.1 in
Minimum Compatible Pipe Size
1/2 in
Maximum Compatible Pipe Size
2 in
Overall Width
16.8 in
Maximum Compatible Tubing Size
2 in
Minimum Compatible Tubing Size
0.5 in
Wire Rope Length
15.1 in
Length
15.1 in
For Pipe Size - Maximum
2 in
For Pipe Size - Minimum
1/2 in

Details

Item
Pipe and Tube Cutter
Voltage
115V AC
Includes
1 1/2 in Brush, 1 1/4 in Brush, 1 in Brush, 1/2 in Brush, 2 in Brush, 2 in Reamer Cone Assembly, 3/4 in Brush, Mountable Storage Rack, Cleaning Brush, Quick-Change Collet, Spare Cutter Wheel
Features
Copper Cutter Wheel Tested to Over 10,000 Cuts, Core Reamer Removes Turbulence-Causing Burrs, Cutting Handle Adjusts to Accommodate Different Tubing Sizes, Large Carrying Handle for Transport
Tool Series
122
Standards
CSA Certified, UL Listed
Switch Type
On/Off Toggle
Functions With
Pipes
Machine Capacity
Tube 1/2 in to 2 in
Characteristics
Guide Rollers, Built-in 1/2 in Incremental Measuring Scale, Carrying Handle
Capacity
Tube and Fitting 1/2" to 2"
Phase
Single-Phase
Application
Cleaning, Cutting, Deburring, Reaming
Free Speed
450 RPM
Tool Weight
50 lb
Current
6 A
Number of Speeds
1
Power Drive Required
Yes
Power Source
Corded
Reversible
No
Compatible Material Type
Copper, Stainless Steel
Frequency
60 Hz
Horsepower
1/3 hp
Kit Contents
Bare Tool
Roller Speed
450 RPM
Motor Type
1/3 HP, 115V, 60Hz induction motor or 1/3 HP, 230V induction motor
Reamer
Single flute cone, RH, 1/2" to 2"
Fitting Capacity
1/2" - 2" (12 mm-54 mm)
Cutter wheel
Model 2191 HD wheel
Product Type
Pipe and Tube Cutter
For Workpiece Material
Copper, Stainless Steel

Description

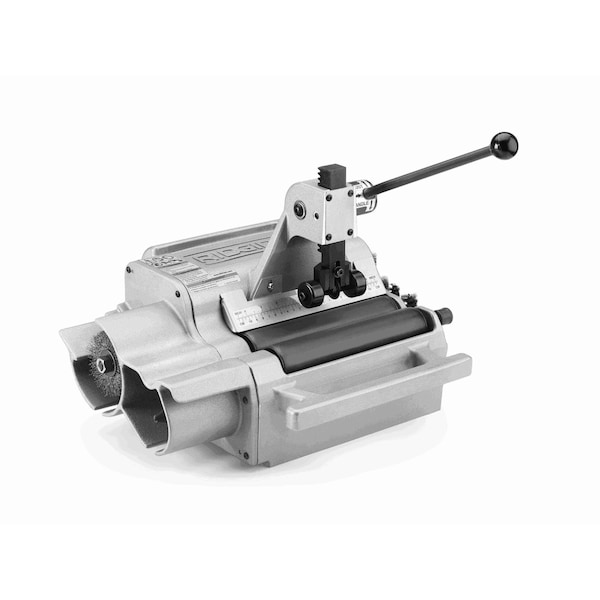

The RIDGID 93492 is a pipe and tube cutter for use in cleaning, cutting, deburring, and reaming of tubes and fittings within the listed capacity. It operates with a 1/3 horsepower induction motor and is compatible with copper and stainless steel materials. The machine features a cutting mechanism for pipe and tubing applications within 1/2 inch to 2 inches diameter, for edge finishing on tubes and fittings within the listed capacity.

Key Features:

  • Machine capacity supports pipe and tubing sizes from 1/2 inch to 2 inches.
  • Motor: 1/3 HP, single-phase induction motor available in 115V or 230V options.
  • Roller speed: 450 RPM with a single-speed operation.
  • Includes a single flute cone reamer for 1/2" to 2" tubing sizes.
  • Features a copper cutter wheel with a manufacturer-stated durability test of over 10,000 cuts and a core reamer for burr removal.
  • Comes with multiple cleaning brushes and a mountable storage rack (brush sizes include 1/2 in to 2 in).
  • Physical dimensions: 15.1 inches long by 16.8 inches wide; tool weight 50 lbs.
  • Power source is corded with an on/off toggle switch.
  • CSA Certified and UL Listed standards.
  • Part of RIDGID Tool Series 122.
