  9. Vacuum Pump, 1-1/2 HP, 13.0 cfm, 115/230V
This item is Discontinued.

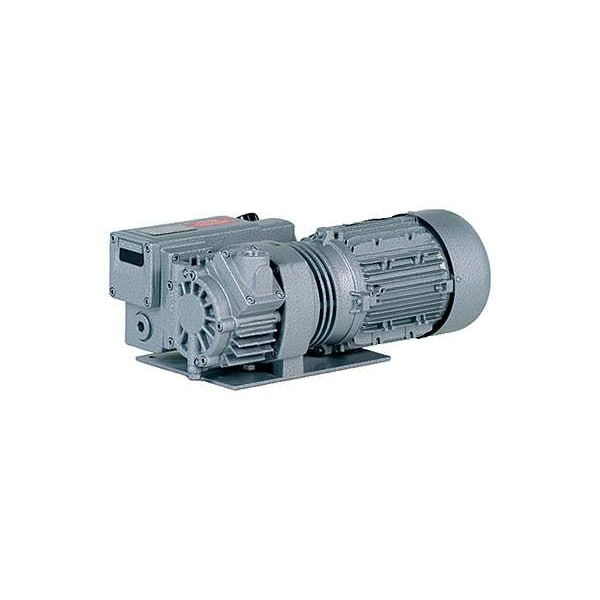

Rietschle Thomas Vacuum Pump, 1-1/2 HP, 13.0 cfm, 115/230V VCB-20

Vacuum Pump, 1-1/2 HP, 13.0 cfm, 115/230V (Discontinued)

  • Mfr # VCB-20
  • Zoro # G0334415
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCB-20
Zoro #
G0334415
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
16.12 in
Overall Height
7.06 in
Overall Width
9.31 in
Outlet Size
1/2 in
Inlet Size
1/2 in NPT

Details

Item
Vacuum Pump
HP
1 1/2 hp
Voltage
115/230V AC
Phase
1
Weight
50.7 lb
Amps AC
15/7.5
Displacement
13.0 cfm
End Vacuum
29.9 in Hg
Max. dBA
64
NPT Inlet
1/2 in
Application
Die Casting, for Vacuum Packaging, ling, Material H, Vacuum Chucking, Vacuum Thermoforming
Includes
Filter, Oil, Oil Separator, Vacuum Non-Return Valve
Filter
Fine Mesh
Oil Capacity
12.8 oz
Ballast
Gas
Finish
Paint
Motor Type
TEFC Continuous Duty
Valve Type
Gas Ballast
Maximum Operating Pressure
29.86 in Hg
Duty Cycle
Continuous
Filter Type
Fine Mesh
Maximum Discharge Pressure
2 mbar
Fluid Compatibility
Oil
Standards
EN 1012-1:2010, EN 1012-2:1996+A1:2009
Output Power
1.5 hp
Outlet Type
FBSP
Maximum Flow Rate
15.6 cfm
Enclosure Type
Totally Enclosed
Current Rating
15.0-14.0/7.5-7.0 A
Frequency
50/60 Hz
Runs Dry
No
Sound Level
64 dBA
Maximum Speed
3,420 RPM
Inlet Type
NPT
Maximum Vacuum
2 mbar
Minimum Operating Temperature
12 Degrees C
Pump Type
Rotary Vane Vacuum
Maximum Operating Temperature
40 Degrees C

Description

Vacuum Pump, Output Power 1.5 hp, Phase Single, Voltage 115/230V AC, Maximum Flow Rate 15.6 cfm, Maximum Vacuum 2 mbar, Inlet Size 1/2 in, Inlet Type NPT, Outlet Size 1/2 in, Outlet Type FBSP, Application Die Casting, for Vacuum Packaging, ling, Material H, Vacuum Chucking, Vacuum Thermoforming, Maximum Discharge Pressure 2 mbar, Maximum Operating Pressure 29.86 in Hg
