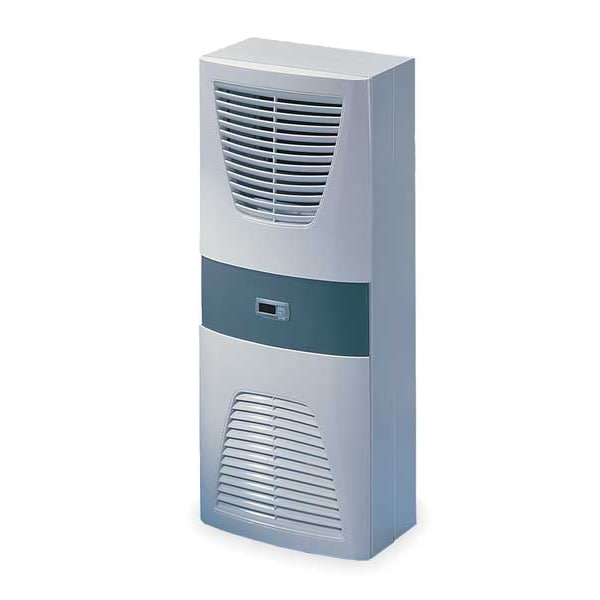

3305540 Enclosure AC, Wall Mount, 5157 BtuH

The Rittal 3305540 is a three-phase, wall-mounted enclosure air conditioner featuring a slate gray sheet steel housing. This cooling-only unit utilizes R134a refrigerant and a comfort controller to manage internal enclosure temperatures. It is equipped with a condenser featuring a hydrophobic RiNano coating and arrives fully wired with assembly parts and a drilling template included.

Performance and Capacity:

• Cooling Capacity: Provides a base cooling capacity of 5,157 BtuH, with a maximum capacity reaching 6,005 BtuH.
• Operating Range: Maintains functionality within an ambient temperature range of 50°F to 131°F.
• Temperature Control: Features a cooling setpoint range adjustable between 68°F and 131°F.
• Power Consumption: Rated for 1.6 kW during operation. Electrical and Safety Specifications:
  • Voltage and Frequency: Operates at 400/460V across 50/60 Hz frequencies.
  • Current: Rated current is 2.5/2.8 A, with an amperage range of 2.8/2.9 A.
  • Standards: Compliance includes UL, cUL, cUR, CSA, EAC, FTTA, and UR certifications. Mechanical Construction:
    • Dimensions: Measures 37.4 inches in height, 15.75 inches in width, and 10.24 inches in depth.
    • Mounting: Specifically configured for wall-mount installation on enclosures.
    • Material: The housing is constructed from sheet steel finished in slate gray.
