  9. Axial Fan, Square, 230V AC, 1 Phase, PBT Plastic, 12 13/16 in W.

This item is Discontinued.

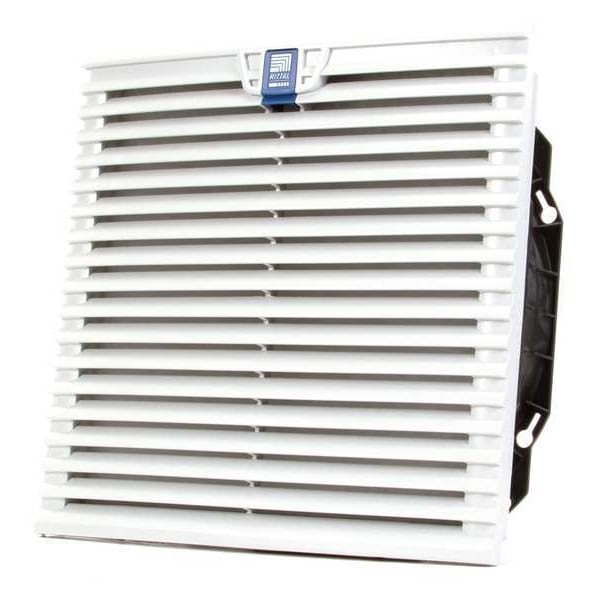

Rittal Axial Fan, Square, 230V AC, 1 Phase, PBT Plastic, 12 13/16 in W. 3244100

Axial Fan, Square, 230V AC, 1 Phase, PBT Plastic, 12 13/16 in W. (Discontinued)

  • Mfr # 3244100
  • Zoro # G4143806
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3244100
Zoro #
G4143806
UPC #
639889858442
Country of Origin
Germany

Dimensions

Depth
5 11/16 in
Height
12 13/16 in
Width
12 13/16 in
Fan Height
12-51/64"
Fan Width
12-51/64"
Fan Width
12-51/64"
Fan Depth
5-45/64"

Details

Blade Material
Steel
CFM @ 0.000-In. SP
353 cfm
Housing Material
PBT Plastic
Phase
1
Shape
Square
Watts
95/135 W
Voltage
230V AC
Housing Finish
Light Gray (RAL 7035)
Max. Ambient Temp.
131 Degrees F
Electrical Connections
Terminals
Thermal Protection
Impedance
Requires
Hard Wiring
Mounting Position
Vertical or Horizontal
Electrical Connection - Fans
Terminals
Mounting Eye O.C. - Fans
11-1/2"
dBA
65/66
Fan Watts
95/135
Fan Shape
Square
Item
Axial Fan
Bearings
Ball
Fan dBA
65/66
Amps
0.43/0.6 A
Motor Insulation
Class B
Standards
UL and CUL Recognized, CE, Type 12 Rated, IP 54 (Standard), CURus, UR, CSA, CCC, EN 60 529/09.2000
Fan Item
Axial Fan
Mounting Eye O.C.
11 1/2 in
Hz
50/60 Hz
Fan Voltage
230VAC
IP Rating
IP54
Bearing Type
Ball
Environmental Applications
Equipment Cooling

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 11 1/2 in, Height 12 13/16 in, Depth 5 11/16 in, Width 12 13/16 in, CFM @ 0.000-In. SP 353 cfm, Watts 95/135 W, Voltage 230V AC, 60/50 Hz Hz, 0.43/0.6 A Amps, Electrical Connection - Fans Terminals, IP Rating IP54, Mounting Position Horizontal/Vertical, Bearing Type Ball, Motor Insulation B, Thermal Protection Yes, Max. Ambient Temp. 131 Degrees F, Blade Material Steel, Housing Material Polybutylene Terephthalate, Requires Cord Set (Not Included)
