  9. Axial Fan, Square, 230V AC, 1 Phase, PBT Plastic, 5 13/16 in W.

This item is Discontinued.

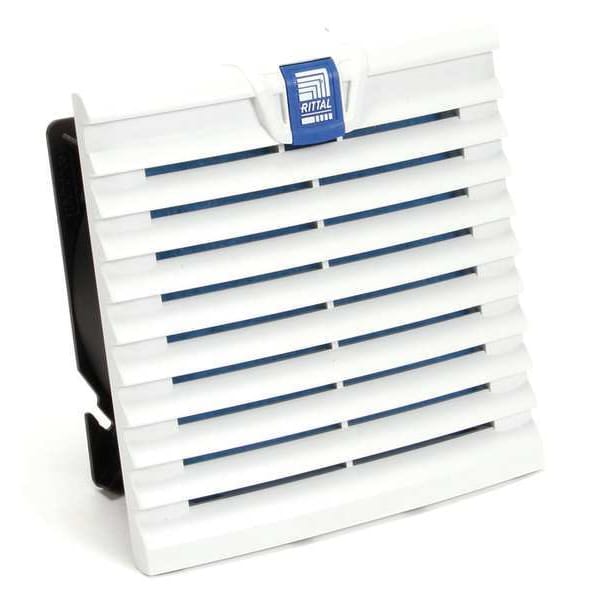

Rittal Axial Fan, Square, 230V AC, 1 Phase, PBT Plastic, 5 13/16 in W. 3238100

Axial Fan, Square, 230V AC, 1 Phase, PBT Plastic, 5 13/16 in W. (Discontinued)

  • Mfr # 3238100
  • Zoro # G4233363
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3238100
Zoro #
G4233363
UPC #
639889858268
Country of Origin
China

Dimensions

Depth
2 7/8 in
Height
5 13/16 in
Width
5 13/16 in
Fan Depth
2-29/32"
Fan Width
5-51/64"
Fan Height
5-51/64"
Fan Width
5-51/64"

Details

Blade Material
Steel
CFM @ 0.000-In. SP
15 cfm
Housing Material
PBT Plastic
Phase
1
Shape
Square
Watts
19/18 W
Includes
Complete Unit Ready for Connection Including Filter Mat
Voltage
230V AC
Mounting Position
Vertical or Horizontal
Mounting Eye O.C. - Fans
4-7/8"
Fan Voltage
230VAC
Fan Watts
18.0/19.0
Hz
50/60 Hz
Bearings
Ball
Amps
0.12/0.11 A
Fan dBA
46/49
Housing Finish
Light Gray (RAL 7035)
Thermal Protection
Impedance
Motor Type
Self Starting Shaded Pole
Item
Axial Fan
dBA
46/49
Max. Ambient Temp.
131 Degrees F
Mounting Eye O.C.
4 7/8 in
Standards
UL and CUL Recognized, CE, Type 12 Rated, IP 54 (Standard), NEMA 12, CURus, UR, CSA, CCC
Fan Shape
Square
Electrical Connections
Terminals
Fan Item
Axial Fan
Electrical Connection - Fans
Terminals
Requires
Hard Wiring
Motor Insulation
Class B
IP Rating
IP54
Environmental Applications
Equipment Cooling
Fan Mounting Location
Enclosure
Bearing Type
Ball

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 7/8 in, Height 5 13/16 in, Depth 2 7/8 in, Width 5 13/16 in, CFM @ 0.000-In. SP 15 cfm, Watts 19/18 W, Voltage 230V AC, 60/50 Hz Hz, 0.12/0.11 A Amps, Electrical Connection - Fans Terminals, IP Rating IP54, Fan Mounting Location Enclosure, Mounting Position Horizontal/Vertical, Bearing Type Ball, Motor Insulation B, Thermal Protection Yes, Max. Ambient Temp. 131 Degrees F, Blade Material Steel, Housing Material Polybutylene Terephthalate
