Shop RITTAL

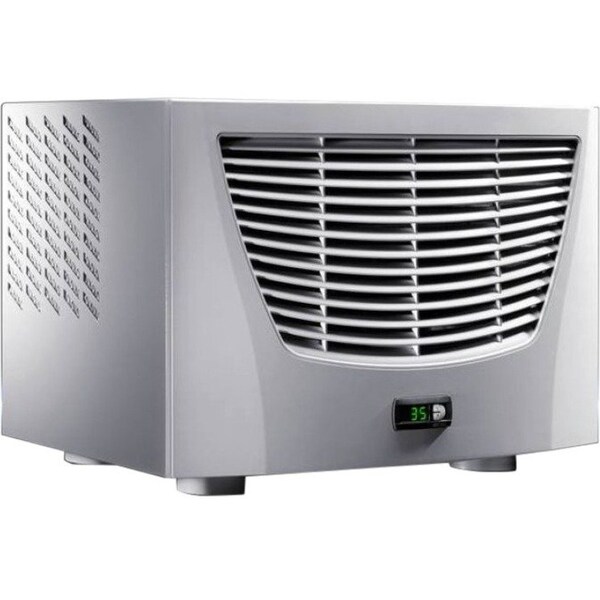

Enclosure AC, Roof Mount, 7274 BtuH

  • Mfr # 3385500

  • Zoro # G1326717

product price:  $7,202.99
/ea
Additional $105.00 delivery surcharge applies per item.
See details

Key Features

Cooling Capacity
7274 BtuH
Amps
5.9/6.3
Phase
Single
Hz
50/60
NEMA Enclosure Type
12
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3385500
Zoro #
G1326717
UPC #
639889000520
Country of Origin
Italy

Dimensions

Height
16 in
Width
24 in
Depth
19 in
Overall Depth
18.7 in
Overall Height
16.42 in
Overall Width
23.5 in

Details

Cooling Capacity
7274 BtuH
Amps
5.9/6.3
Phase
Single
Hz
50/60
NEMA Enclosure Type
12
Housing Material
Sheet Steel
Mounting
Roof Mount
Voltage
230
Standards
CSA, cUL, cUR, EAC, FTTA, UL, UR
Cooling Method
Refrigerant
Housing Color
Slate Gray
Refrigerant
R134a
Control Type
Comfort Controller
Item
Enclosure Air Conditioner
Wiring Method
Fully Wired
Includes
Assembly Parts, Condenser with Hydrophobic RiNano Coating, Drilling Template
Product Type
Cooling Unit
Operation Mode
Cooling Only
Refrigerant Type
R134a
Frequency
50/60 Hz
Current
5.9/6.3 A
Power Consumption
2 kW
Operating Temperature - Minimum
50 Degrees F
Cooling Setpoint - Maximum
131 Degrees F
Cooling Setpoint - Minimum
68 Degrees F
NEMA Enclosure Rating
12
Operating Voltage
230 V
Operating Temperature - Maximum
131 Degrees F
Cooling Capacity - Maximum
7,302 BtuH

Description

This Rittal roof-mount enclosure air conditioner is rated at 7,274 BtuH cooling capacity (7,302 BtuH max) and uses R134a refrigerant with a Comfort Controller. It runs on single-phase power at 230V, drawing 5.9/6.3 amps at 50/60 Hz, with power consumption of 2 kW. The unit is fully wired and ships with assembly parts, a drilling template, and a condenser with hydrophobic RiNano coating included. The housing is sheet steel with a slate gray finish, and the unit carries a NEMA 12 enclosure rating. Listed operating temperature range is 50°F to 131°F, with a cooling setpoint range of 68°F to 131°F. Specifications Cooling Capacity: 7,274 BtuH (7,302 BtuH max) Voltage: 230V | Phase: Single | Frequency: 50/60 Hz Amps: 5.9/6.3 A Power Consumption: 2 kW NEMA Enclosure Rating: 12 Operating Temp Range: 50°F to 131°F Cooling Setpoint Range: 68°F to 131°F Refrigerant: R134a | Cooling Method: Refrigerant Housing: Sheet Steel, Slate Gray Standards: CSA, cUL, cUR, EAC, FTTA, UL, UR Dimensions: 16 in H x 24 in W x 19 in D Country of Origin: Italy
