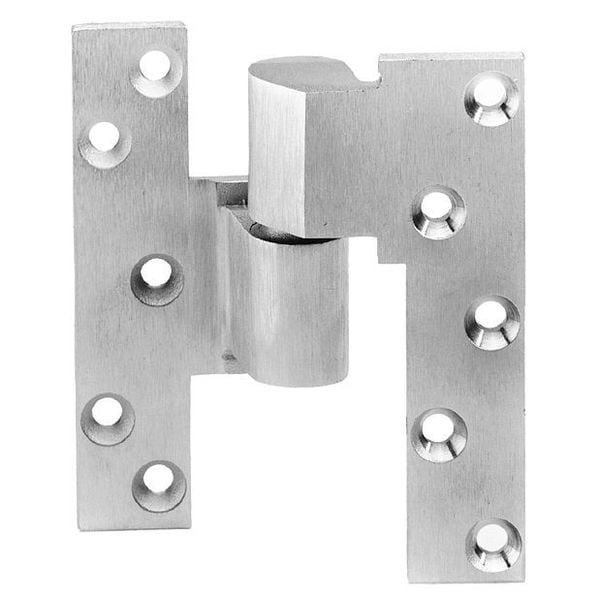

Pivot Hinge, Brass, Full Mortise Mounting, 1 1/8 in Leaf W x 5 in Leaf H, Satin Chrome
Mfr # M19 626 LH
Zoro # G0681441
product price:Â
$
318.99
/ea
Free Shipping & Returns
Key Features
Material
Brass
Finish
Satin Chrome
Load Capacity
250 lb
Ligature Resistant
No
Range of Motion
180 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- M19 626 LH
- Zoro #
- G0681441
- UPC #
- 015231872425
- Country of Origin
- United States
- Item
- Pivot Hinge
- Material
- Brass
- Finish
- Satin Chrome
- Load Capacity
- 250 lb
- Ligature Resistant
- No
- Range of Motion
- 180 Degrees
- Orientation
- Left Hand
- Mounting
- Full Mortise
- Bearing Type
- Bushing
- Holes per Leaf
- 5
- Hardware
- Included
- Holes
- With
- Corners
- Square
- Standards
- BHMA/ANSI NO: C07162
- Pin Type
- Nonremovable
- Pin Material
- Hardened Steel
- Range of Motion - Maximum
- 180 Degrees
- Mounting Style
- Full Mortise
- Includes Hardware
- Hardware Included
- Corner Type
- Square
- ANSI/BHMA Finish
- Satin Chromium-Plated
- Number of Holes per Leaf
- 5
- Includes Holes
- Holes Included
Description
Pivot Hinge, Brass Material, Satin Chrome Finish, 250 lb Load Capacity, With Holes, 5 Holes per Leaf, No Ligature Resistant, 180 Degrees Range of Motion, Orientation Left Hand, 1 3/4 in Required Door Thickness, Bushing Bearing Type, Square Corners, Included Hardware, Full Mortise Mounting, Hardened Steel Pin Material, Nonremovable Pin Type, BHMA/ANSI NO: C07162 Standards, Door Leaf Height 5 in, Door Leaf Width 1 1/8 in, Frame Leaf Height 5 in
