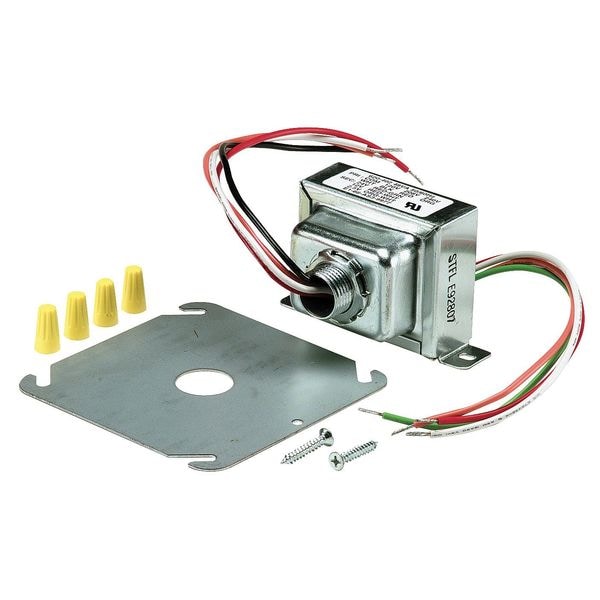

Class 2 Transformer, 48 VA, NEMA 1, 2.5/12/24V AC, 120/208/240V AC
Mfr # 620-402
Zoro # G2814682
CAD Available
product price: $36.89
/eaKey Features
CAD Drawing
Input Voltage - Transformer
120/208/240V AC
Output Voltage
2.5/12/24V AC
Power Rating
48 VA
Phase
1
Mounting - Transformer
Foot; Plate
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
620-402
Zoro #
G2814682
UPC #
662013640422
Country of Origin
China
Dimensions
Overall Height
2 3/4 in
Overall Width
2.19 in
Overall Depth
3 1/4 in
Manufacturers Warranty Length
1 yr
Primary Lead Length
8" (203mm)
Secondary Lead Length
8" (203mm)
Wire Lead Length - Secondary
8 in
Wire Lead Length - Primary
8 in
Description
Class 2 Transformer, Input Voltage - Transformer 120V AC, 208V AC, 240V AC, Output Voltage - Transformer 12V AC, 2.5V AC, 24V AC, VA Rating - Transformer 48 VA, Protective Device Primary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Plate, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Primary Connection 8 in Leads, Secondary Connection 8 in Leads, Temp. Rise Not Rated, Enclosure Finish No Finish, Enclosure Rating NEMA 1
