  5. Gas Valve, Natural Gas, Standing Pilot, 120 V, 3.5 in wc, Fast Opening, 0.034 A, 3/4 in Inlet Size

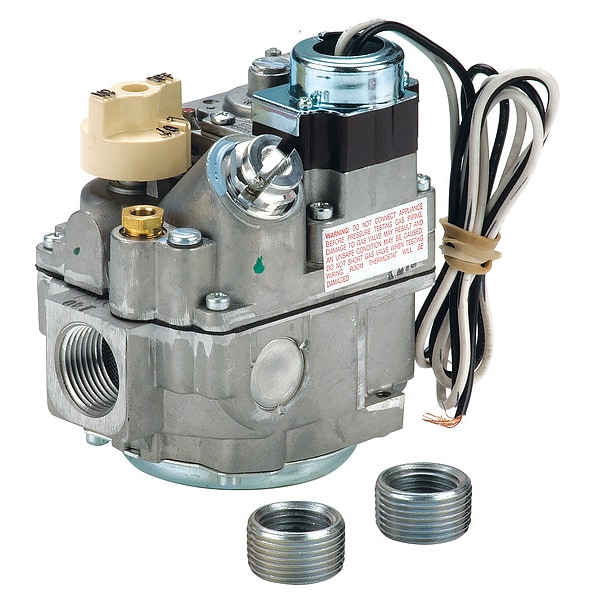

Robertshaw Gas Valve, Natural Gas, Standing Pilot, 120 V, 3.5 in wc, Fast Opening, 0.034 A, 3/4 in Inlet Size 700-454 - main

Gas Valve, Natural Gas, Standing Pilot, 120 V, 3.5 in wc, Fast Opening, 0.034 A, 3/4 in Inlet Size

  • Mfr # 700-454

  • Zoro # G2913233

product price:  $215.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
300,000 BtuH
Coil Volts
120 V
Gas Type
Natural Gas
Ignition Type
Standing Pilot
Inlet Size
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
700-454
Zoro #
G2913233
UPC #
662013632502
Country of Origin
Mexico

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Pilot Port Connection Size
1/4 in
Port Connection Size
3/4 in

Details

BtuH Capacity
300,000 BtuH
Coil Volts
120 V
Gas Type
Natural Gas
Ignition Type
Standing Pilot
Reducer Bushing Kit
(2) 3/4 x 1/2 in
Valve Type
Fast Opening
Amps AC
0.034 A
Ambient Temp. Range
-40 Degrees F to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
No
Pressure Setting Range
3.5 in wc
Flow Direction
Straight-Thru
Includes
(2) 3/4 x 1/2 in Reducer Bushings, Outlet Pressure Tap
Standards
RoHS Compliant
Inlet Pressure Tap
No
Side Taps
No
Sensing Type
Flame Sensor
Includes On/Off Switch
On/Pilot/Off Switch Included
Operating Temperature - Minimum
-40 Degrees F
Includes Side Taps
Side Taps Not Included
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Opening Characteristic
Fast Opening
Includes Conversion Kit
Conversion Kit Not Included
Includes Pressure Tap
Pressure Tap Outlet Included
For Media
Natural Gas
Voltage
120V AC
Valve Design
Single
Port Connection Type
NPT
Includes Pressure Regulator
Pressure Regulator Included
Operating Temperature - Maximum
175 Degrees F
Manufacturer Series
700
Current
0.017 A
Pilot Type
Standing Pilot
Heating Capacity - Maximum
300,000 BtuH
Pilot Port Connection Type
Compression
Reducer Bushings Included
(2) 3/4 x 1/2 in
Installation Orientation
Versatile
Includes Thermostat
Mechanical Thermostat Not Included
Port Connection Gender
Female

Description

Gas Valve, Current 0.017 A, Flow Direction Straight-Thru, For Media Natural Gas, Heating Capacity - Maximum 300,000 BtuH, Includes Conversion Kit Conversion Kit Not Included, Includes On/Off Switch On/Pilot/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Outlet Included, Includes Side Taps Side Taps Not Included, Includes Thermostat Mechanical Thermostat Not Included
