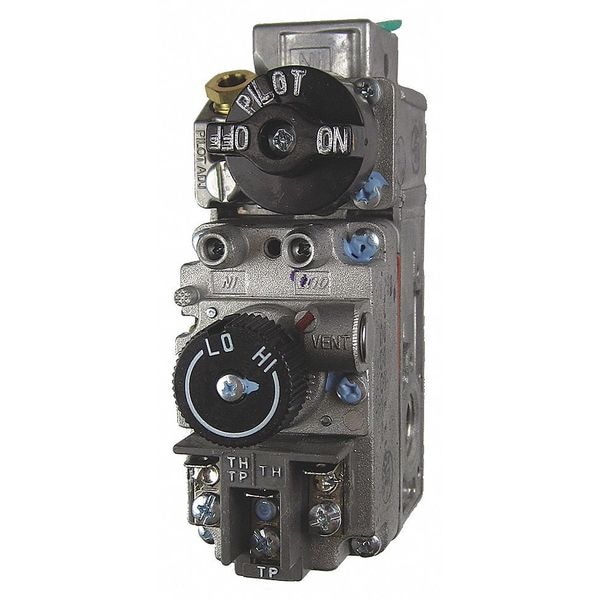

Robertshaw Gas Valve, NG/LP, 750 mV, 1.7 to 3.5" WC, Low Capacity, -40 to 175 Degrees F, 1/2 in Inlet Size 710-511 - main

Gas Valve, NG/LP, 750 mV, 1.7 to 3.5" WC, Low Capacity, -40 to 175 Degrees F, 1/2 in Inlet Size

  • Mfr # 710-511

  • Zoro # G4571691

product price:  $172.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
70,000 BtuH
Coil Volts
750 mV
Gas Type
NG/LP
Inlet Size
1/2 in
Outlet Size
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
710-511
Zoro #
G4571691
UPC #
662013644734
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
3/8 in
Port Connection Size
3/8 in
Pilot Port Connection Size
1/4 in

Details

BtuH Capacity
70,000 BtuH
Coil Volts
750 mV
Gas Type
NG/LP
Valve Type
Low Capacity
Ambient Temp. Range
-40 to 175 Degrees F
Item
Gas Valve
Pressure Setting Range
1.7 to 3.5" WC
Flow Direction
Straight-Thru
Side Taps
No
Inlet Pressure Tap
Yes
Max. Inlet Pressure
1/2 psi
Standards
RoHS compliant, NEMA, CSA
Includes Thermostat
Mechanical Thermostat Not Included
Installation Orientation
Versatile
Includes Conversion Kit
Conversion Kit Included
Pilot Type
Standing Pilot
Opening Characteristic
Fast Opening
Reducer Bushings Included
None
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Voltage
750mV
Includes Side Taps
Side Taps Not Included
Operating Temperature - Maximum
175 Degrees F
Port Connection Gender
Female
Heating Capacity - Maximum
70,000 BtuH
Manufacturer Series
710
Sensing Type
Flame Sensor
Port Connection Type
NPT
Pilot Port Connection Type
Compression
Operating Temperature - Minimum
-40 Degrees F
Valve Design
Single
Includes Pressure Tap
Pressure Tap Inlet Included
Includes Pressure Regulator
Pressure Regulator Included
For Media
Liquid Propane, Natural Gas
Includes On/Off Switch
On/Pilot/Off Switch Included

Description

Gas Valve, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 70,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Pilot/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Includes Side Taps Side Taps Not Included, Includes Thermostat Mechanical Thermostat Not Included
