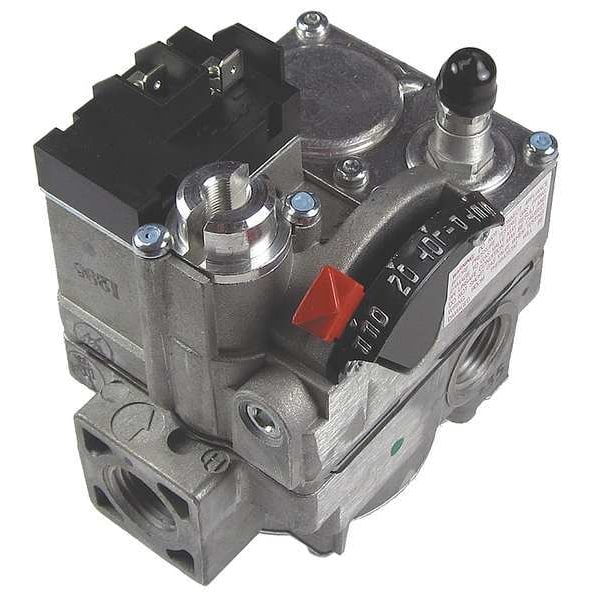

Robertshaw Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 to 14.0 in wc, Combination, 0.5 A, -40 to 175 Degrees F 720-472 - main

Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 to 14.0 in wc, Combination, 0.5 A, -40 to 175 Degrees F

  • Mfr # 720-472

  • Zoro # G4619185

product price:  $146.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
150,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
720-472
Zoro #
G4619185
UPC #
662013636593
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Pilot Port Connection Size
1/4 in
Port Connection Size
3/4 in

Details

BtuH Capacity
150,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Reducer Bushing Kit
1/2 x 3/8"
Valve Type
Combination
Amps AC
0.5 A
Ambient Temp. Range
-40 to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
3.5 to 14.0 in wc
Flow Direction
Straight-Thru
Includes
Fitting
Inlet Pressure Tap
Yes
Side Taps
Yes
Max. Inlet Pressure
1/2 psi
Standards
RoHS compliant, NEMA, CSA
Includes Side Taps
Side Taps Not Included
Voltage
24V AC
Heating Capacity - Maximum
150,000 BtuH
Sensing Type
Flame Sensor
Valve Design
Dual
Current
0.5 A
Electrical Connections
Screw/Spade Terminal
Port Connection Gender
Female
For Media
Liquid Propane, Natural Gas
Opening Characteristic
Step Opening
Installation Orientation
Versatile
Pilot Type
Standing Pilot
Pilot Port Connection Type
Compression
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Reducer Bushings Included
1/2 x 3/8 in
Manufacturer Series
720
Operating Temperature - Maximum
175 Degrees F
Includes Pressure Regulator
Pressure Regulator Included
Includes Conversion Kit
Conversion Kit Included
Includes Pressure Tap
Pressure Tap Inlet Included
Port Connection Type
NPT
Operating Temperature - Minimum
-40 Degrees F
Includes Thermostat
Mechanical Thermostat Not Included
Includes On/Off Switch
On/Pilot/Off Switch Included

Description

Gas Valve, Current 0.5 A, Electrical Connections Screw/Spade Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 150,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Pilot/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Includes Side Taps Side Taps Not Included
