  5. Millivolt Kit, Natural Gas, Pilot, 750 mV, 3.5 in wc, Low Capacity, 58 to 90 Degrees F
Robertshaw Millivolt Kit, Natural Gas, Pilot, 750 mV, 3.5 in wc, Low Capacity, 58 to 90 Degrees F 710-296 - main

Millivolt Kit, Natural Gas, Pilot, 750 mV, 3.5 in wc, Low Capacity, 58 to 90 Degrees F

  • Mfr # 710-296

  • Zoro # G5055766

product price:  $155.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
70,000 BtuH
Coil Volts
750 mV
Gas Type
Natural Gas
Ignition Type
Pilot
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
710-296
Zoro #
G5055766
UPC #
662013633820
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Port Connection Size
1/2 in

Details

BtuH Capacity
70,000 BtuH
Coil Volts
750 mV
Gas Type
Natural Gas
Ignition Type
Pilot
Reducer Bushing Kit
(2) 1/2 x 3/8 in
Valve Type
Low Capacity
For Use With
Millivolt Wall Furnaces, In-The-Floor Furnaces, and Fireplaces
Ambient Temp. Range
58 to 90 Degrees F
Item
Millivolt Kit
Pressure Setting Range
3.5 in wc
Flow Direction
Straight-Thru

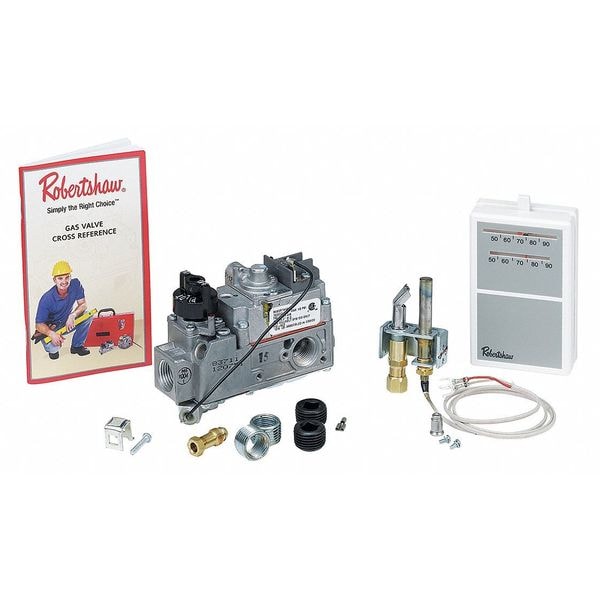

Includes
(2) 1/2 x 3/8 in Reducer Bushings, Gas Valve Cross Reference Book, Mechanical Thermostat, Millivolt Gas Valve, Pilot Uni-Kit
Side Taps
Yes
Inlet Pressure Tap
Yes
Voltage
750mV
Includes Conversion Kit
Conversion Kit Included
Includes On/Off Switch
On/Pilot/Off Switch Included
Valve Design
Single
Port Connection Type
NPT
Operating Temperature - Maximum
90 Degrees F
Application
Limited Space, Low Capacity
Manufacturer Series
710
Includes Pressure Tap
Pressure Tap Inlet Included
Reducer Bushings Included
(2) 1/2 x 3/8 in
Port Connection Gender
Female
Includes Pressure Regulator
Pressure Regulator Included
Operating Temperature - Minimum
58 Degrees F
For Media
Liquid Propane, Natural Gas
Heating Capacity - Maximum
70,000 BtuH
Opening Characteristic
Fast Opening
Includes Side Taps
Side Taps Not Included
Includes Pilot Generator Kit
Pilot Generator Kit Included
Sensing Type
Flame Sensor
Pilot Type
Standing Pilot
Includes Thermostat
Mechanical Thermostat Included

Description

Gas Valve, Application Limited Space, Low Capacity, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 70,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Pilot/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Includes Side Taps Side Taps Not Included
