  9. Pressure Switch, Gold Contacts

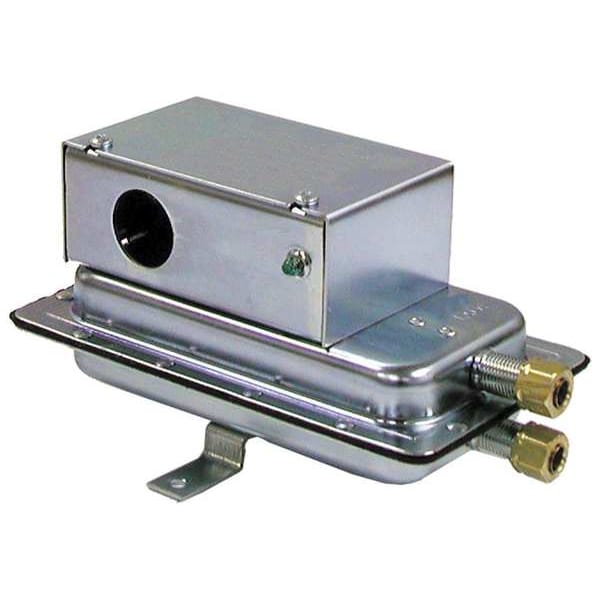

Robertshaw Pressure Switch, Gold Contacts 2374-503 - main

Pressure Switch, Gold Contacts

  • Mfr # 2374-503

  • Zoro # G1178965

product price: $69.15
/ea

Key Features

Operating Temp. Range (F)
-40 to 180
Width (In.)
3 1/4 in
Includes
Adjustment Tool, Mounting Hardware
Application
Air Filtration, Furnace Control, Humidity Detection and Control, Commercial HVAC, Residential HVAC
Mounting Holes O.C. (In.)
3 7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2374-503
Zoro #
G1178965
UPC #
094714370597
Country of Origin
Mexico

Dimensions

Width (In.)
3 1/4 in
Height (In.)
6 1/8 in
Depth (In.)
3 1/4 in
Overall Height
6 1/8 in
Overall Depth
3 1/4 in
Sample Line Connection Size
1/8 in, 1/4 in, 3/8 in
Overall Width
3 1/4 in

Details

Operating Temp. Range (F)
-40 to 180
Item
Air Pressure Switch
Includes
Adjustment Tool, Mounting Hardware
Application
Air Filtration, Furnace Control, Humidity Detection and Control, Commercial HVAC, Residential HVAC
Mounting Holes O.C. (In.)
3 7/8 in
Differential (In. WC)
0.02 to 0.8
Mounting Location
Vertical
Switch Type
SPDT
Function
Sense Positive, Negative or Differential Air Pressure
Agency Compliance
CSA Certified, UL listed
Features
Gold Contacts, Adjustable Set-Point Range, Compact Size, Wide Operating Temperature Range, Withstands Shock And Vibration
Pressure Setting Range (In. WC)
0.05 to 12.0
Sample Line Connector
Integral Compression
Type
Gold Contacts
Electrical Rating
1 A Pilot Duty @ 120 VA, 5 A @ 120 to 277V AC, 5 A @ 28V DC
Reset Type
Automatic Reset
Product Type
Air Pressure Switch
Maximum Differential Pressure Setting
0.8 in wc
Sample Line Connector Type
Integral Compression
Standards
CSA Certified LR18754, UL Listed MH6213
Electrical Connection Type
Screw Terminals
Maximum Pressure Setting
12 in wc
Input Voltage
120V AC, 277V AC, 28V DC
Minimum Pressure Setting
0.05 in wc
Contact Form
SPDT
Mounting Orientation
Vertical
Number of Switches
1
Pressure Setpoint Type
Adjustable
Housing Type
Conduit Box
Maximum Pressure Rating
0.5 psi
Pressure Type
Differential, Negative, Positive
Mounting Hole Center to Center Distance
3 7/8 in
Maximum Operating Temperature
190 Degrees F
Minimum Differential Pressure Setting
0.02 in wc
Minimum Operating Temperature
-40 Degrees F
Housing Material
Stainless Steel

Description

Air Pressure Switch, Application Air Filtration, Furnace Control, Humidity Detection and Control, Commercial HVAC, Residential HVAC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1 A Pilot Duty @ 120 VA, 5 A @ 120 to 277V AC, 5 A @ 28V DC, Housing Material Stainless Steel, Housing Type Conduit Box, Includes Adjustment Tool, Mounting Hardware, Input Voltage 120V AC, 277V AC, 28V DC, Maximum Differential Pressure Setting 0.8 in wc
