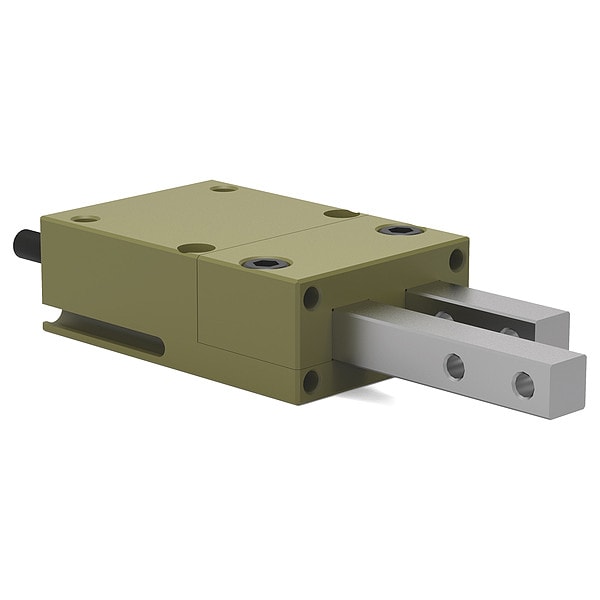

Feed Escapement
Mfr # RFE-11M
Zoro # G0894769
product price: $832.99
/ea
Free Shipping & Returns
Key Features
Weight
0.33 lb
Size
11M
Maximum Operating Temperature
180 Degrees F
Series
RFE
Thrust Force at Maximum Pressure
25 lbf
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RFE-11M
Zoro #
G0894769
UPC #
-
Country of Origin
United States
Dimensions
Size
11M
Air Port Thread Size
M5
Cylinder Bore Diameter
0.563 in
Rod Diameter
1/4 in
Bore Diameter
5/8 in
Stroke Length
5/8 in
Description
Feed Escapement, Thrust Force @ 100 psi 111 N, Stroke Length 5/8 in, Stroke Adjustability Adjustable, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Bore Diameter 5/8 in, Rod Diameter 1/4 in, Maximum Actuation Time 0.4 sec, Displacement 2.6 cc, Escapement Rate per Minute 150, Finger Mounting Side, Seal Material Buna-N, Weight 0.33 lb, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F
