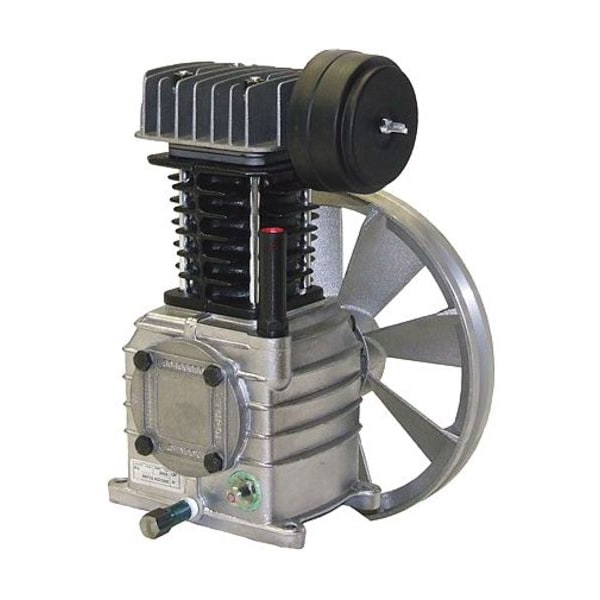

Cylinder Replacement Pump, 1 hp, 1 1/2 hp, 1 Stage, 12 fl oz Oil Capacity, 1 Cylinder
Mfr # PMP11K8GR
Zoro # G9796647
product price:Â
$
380.99
/ea
Free Shipping & Returns
Key Features
HP
1 hp, 1 1/2 hp
Number of Stages
1
Lubrication Type
Splash Lubricated
Number of Cylinders
1
Max. Pressure
145 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PMP11K8GR
- Zoro #
- G9796647
- UPC #
- 662865010176
- Country of Origin
- Italy
Dimensions
- Flywheel Dia.
- 10 1/8 in
- Sheave Size @ 3450 rpm
- 6 17/32 in
- Bore Dia.
- 2 39/64 in
- Sheave Size @ 1725 RPM
- 5 3/64 in, 6 17/32 in
- Overall Width
- 10.23 in
- Overall Height
- 12 in
- Overall Depth
- 8.65 in
- Stroke Length
- 1 7/8 in
- Bore Diameter
- 2.6 in
- Flywheel Diameter
- 10 1/8 in
- Outlet Size
- 0.5 in
Description
Cylinder Replacement Pump, Lubrication Type Splash Lubricated, Number of Stages 1, Maximum Output Power 1.5 hp, Free Air Flow Rate @ Maximum Pressure 2.66/3.72 cfm @ 145 psi, Number of Cylinders 1, Maximum Operating Pressure 145 psi, Flywheel Diameter 10 1/8 in, Flywheel Included Yes, Pump Speed 1,000 RPM, Construction Aluminum, Cast Iron, Groove Section A, Number of Grooves 1, Valve Type Reed, Valve Material Stainless Steel, Rotation CCW, Stroke Length 1 7/8 in
