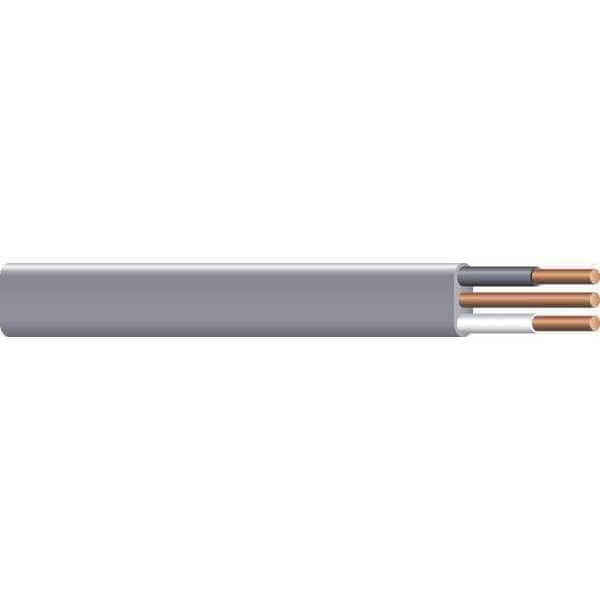

Non-Metallic Underground Feeder Cable, UF-B, 14 AWG, 2C with Ground C, Gray, PVC, Solid, 600V AC

  • Mfr # 13054255

  • Zoro # G2333274

product price:  $175.99
/ea
Free Shipping & Returns

Key Features

Trade Designation
UF-B
Wire Size
14 AWG
Conductor Material
Copper
Number of Conductors
2C with Ground
Wire Color
Bare/Black/White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
13054255
Zoro #
G2333274
UPC #
032886266003
Country of Origin
United States

Dimensions

Wire Size
14 AWG
Length
250 ft
Nominal Outside Dia.
0.42 in x 0.17 in
Conductor Size
14 AWG
Overall Length
250 ft
Nom. Height (Mils)
168mils
Insulation Thickness (Mils)
15mils
Nom. Width (Mils)
423mils
Jacket Thickness (Mils)
32mils
Nominal Outside Diameter
0.42 in x 0.17 in
Minimum Bend Radius
1 11/16 in
Grounding Conductor Size
14 AWG
Wire Rope Length
250 ft

Details

Item
Non-Metallic Underground Feeder Cable
Trade Designation
UF-B
Conductor Material
Copper
Number of Conductors
2C with Ground
Wire Color
Bare/Black/White
Jacket Color
Gray
Jacket Material
PVC
Conductor Design
Solid
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Standard 83 and UL Standard 493
Application
Outside Post Lamps, Pumps
Max. Amps
15 A
Stranding
1
Packaging
Coil
Applications
ApplicationSouthwire® copper UF-B cable is generally used as feeder to outside post lamps, pumps, and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 volts.
Construction
ConstructionSouthwire® copper UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire. Copper conductors are annealed (soft) copper, solid or compressed stranded. Phase conductors are polyvinyl chloride (PVC) insulated, nylon jacketed, color coded for identification purposes. Jacketed with sunlight, moisture and fungus resistant gray PVC.
Conductor Insulation Color
Black, White
Grounding Conductor Insulation Color
Bare
Conductor Insulation Material
Nylon, PVC
Number of Strands
1
Grounding Conductor Material
Copper
Number of Ground Conductors
1
Temperature Rating - Maximum Dry
194 Degrees F
Grounding Conductor Insulation Material
Uninsulated

Description

Underground Feeder Cable, Number of Conductors 2, Wire Size 14 AWG, Trade Designation UF-B, Jacket Material PVC, Jacket Color Gray, Length 250 ft, Conductor Design Solid, Voltage 600 V, Wire Color Bare, Black, White, Nominal Outside Dia. 0.42 in x 0.17 in, Temp. Rating 194 Degrees F, Application Outside Post Lamps, Pumps, Standards UL 493, UL 83, Insulation Material PVC, Packaging Coil
