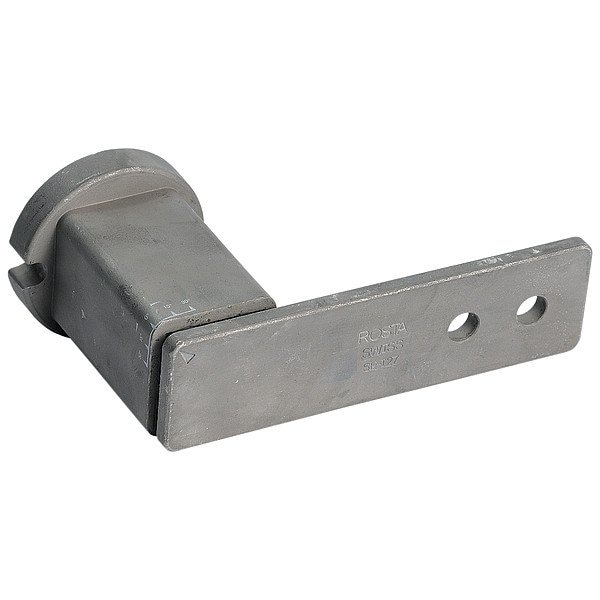

Elastomeric Tensioner, Stainless Steel
Mfr # 06071113
Zoro # G408449552
product price:Â
$
388.99
/ea
Free Shipping & Returns
Key Features
Idler Bolt Thread Size
M12
Maximum Operating Temperature
80 Degrees C
Arm Material
Stainless Steel
For Belt Width
2 11/64 in
Arm Width
50 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 06071113
- Zoro #
- G408449552
- UPC #
- -
- Country of Origin
- Switzerland
- Item
- Elastomeric Tensioner
- Maximum Operating Temperature
- 80 Degrees C
- Arm Material
- Stainless Steel
- Maximum Travel at 30 Degrees
- 65 mm
- Application
- Food Industry
- Maximum Travel at 20 Degrees
- 44 mm
- Idler Hole System of Measurement
- Metric
- Arm Rotation
- 30 Degrees
- Features
- Belt Elongation Compensation, Guiding and Vibration Damping, Quiet, Self-Retensioning
- Minimum Operating Temperature
- -40 Degrees C
- Housing Material
- Stainless Steel
- Finish
- Painted
- Tension Force at Normal Position
- 810 N
- Insert Material
- Rubber
- Travel at Normal Position
- 65 N
- Resistance Properties
- Corrosion Resistant, Food Grade
- Tension Force at Hard Position
- 1050 N
- Travel at Hard Position
- 50 N
- Product Type
- Elastomeric Tensioner
Description
Elastomeric Tensioner, Application Food Industry, Arm Length to End 155 mm, Arm Length to Hard Position Hole 100 mm, Arm Length to Normal Position Hole 130 mm, Arm Material Stainless Steel, Arm Rotation 30 Degrees , Arm Width 50 mm, Features Belt Elongation Compensation, Guiding and Vibration Damping, Quiet, Self-Retensioning, Finish Painted, For Belt Width 2 11/64 in, Housing Material Stainless Steel, Idler Bolt Length Not Applicable, Idler Bolt Thread Size M12
