No Product Image Available

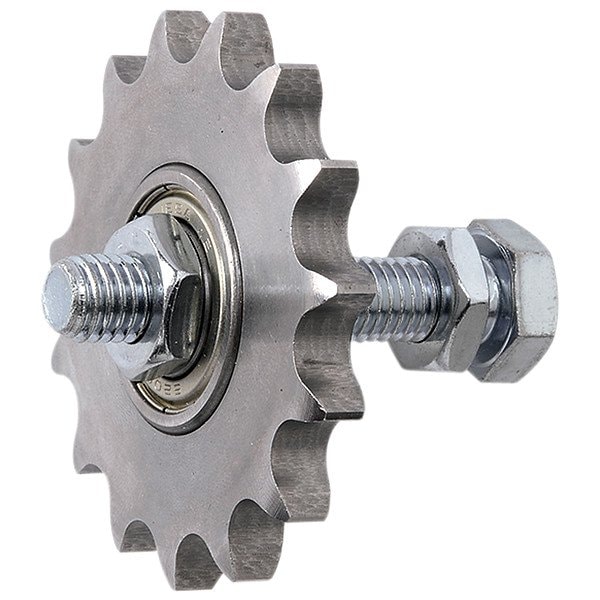

Sprocket Wheel Set, Double Shielded

  • Mfr # 06510005

  • Zoro # G508449452

product price: $95.19
/ea
Free Shipping & Returns

Key Features

Chain Number
60
Number of Teeth
15
Length through Bore
15 mm
Lubrication
Self-Lubricating
Pitch Diameter
76.36 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
06510005
Zoro #
G508449452
UPC #
-
Country of Origin
Switzerland

Dimensions

Length through Bore
15 mm
Pitch Diameter
76.36 mm
Sprocket Width
15 mm
Idler Bolt Length
100 mm
Bore Diameter
20 mm
Tooth Width
9.1 mm
Idler Bolt Thread Size
M20

Details

Chain Number
60
Number of Teeth
15
Lubrication
Self-Lubricating
Item
Sprocket Wheel Set
Bearing Closure
Double Shielded
Maximum Operating Temperature
100 Degrees C
Compatible with Series
38
Hub Projection
100 mm
Product Type
Sprocket Wheel Set
For Number of Strands
Single
Compatible with Brand
Rosta
Minimum Operating Temperature
-40 Degrees C
Compatible with Manufacturer Model Number
06011005
Features
Automatic Re-Tensioning, Best Possible Transfer of Power, Compensation for Belt Elongation, Includes Bolt and Three Hex Nuts for Mounting, Pressing, Guiding and Vibration Damping, Quiet and Smooth Running
Bearing Type
Ball
Standards
ANSI, DIN 8187, ISO 12 B-1
For Chain Pitch
3/4 in
Number of Sprockets
1
Idler Hole System of Measurement
Metric
For Use With
Chain Drives
Compatible Manufacturer Part Number
06011005
Compatible Manufacturer Model Number
06011005
For Use With Mfr. Model Number
06011005
Compatible with Manufacturer Model No.
06011005
Compatible with Mfr. Model No.
06011005
For Use with Mfr Model Number
06011005
Compatible Pump Manufacturer Part Number
06011005
Compatible Mfr. Model Number
06011005

Description

Sprocket Wheel Set, Product Type Sprocket Wheel Set, Chain Number 60, Bearing Type Ball, For Number of Strands Single, For Chain Pitch 3/4 in, Idler Bolt Thread Size M20, Idler Hole System of Measurement Metric, Length through Bore 15 mm, Number of Sprockets 1, Number of Teeth 15, Sprocket Width 15 mm, Standards ANSI, DIN 8187, ISO 12 B-1, Bearing Closure Double Shielded, Bore Diameter 20 mm, Compatible with Brand Rosta, Compatible with Grainger Part Number 798K96
