Shop ROYAL PRODUCTS

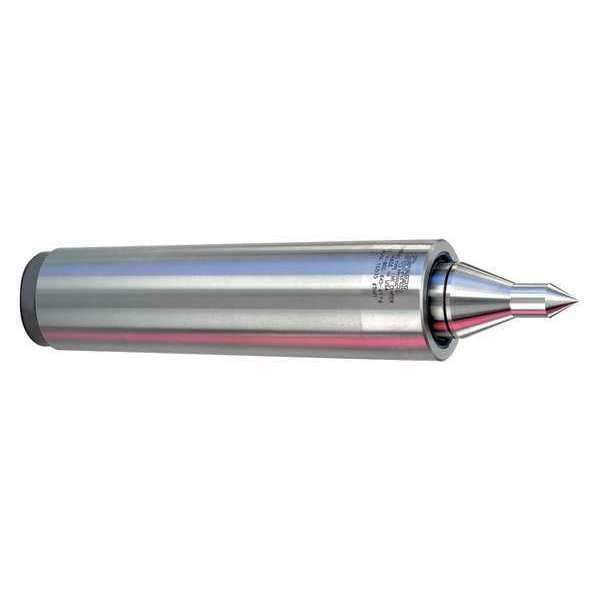

HSS Live Center, 4 MT, CNC Point

  • Mfr # 10534

  • Zoro # G2040991

product price:
$
1,471.99
/ea
Free Shipping & Returns

Key Features

Included Angle (Deg.)
60
Point Type
CNC Point
Morse Taper
4 MT
Function
Used to Compensate for Workpiece Thermal Expansion
Weight of Workpiece (Lb.)
580
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10534
Zoro #
G2040991
UPC #
698230105345
Country of Origin
United States

Dimensions

Dimension F (In.)
1.38
Dimension H (In.)
0.38
Dimension G (In.)
0.63
Dimension I (In.)
0.7
Dimension B (In.)
1.231
Point Length
1.38 in
Shank Taper Size
MT4
Head Dia.
1.2310 in
Point Dia.
3/8 in
Head Diameter
1.23 in
Point Diameter
0.63 in

Details

Item
Live Center
Included Angle (Deg.)
60
Point Type
CNC Point
Morse Taper
4 MT
Function
Used to Compensate for Workpiece Thermal Expansion
Weight of Workpiece (Lb.)
580
Thrust Rating (Lb.)
435
Bearings
Tri-Bearing Design
Construction
Steel
Accuracy
+/-0.00005"
Max. RPM
4500
Features
Can be Used in the Turret of Sub-Spindle Machines to Overcome a Lack of Hydraulic Compensation, Low-Profile Design Provides Outstanding Tool Clearance, Unique Spring-Loaded Point Compensates for Workpiece Thermal Expansion
Included Angle
60 Degrees
Application
Sub-Spindle Machines
Body Material
High Speed Steel
Max. Speed
4,500 RPM
Max. Workpiece Weight
580 lb
Bearing Type
Dual-Bearing Design
Shank Type - Machining
Taper
Thrust Load
435 lb
Point Style
CNC
Workpiece Weight - Maximum
435 lb
Material
Steel
Speed - Maximum
4,500 RPM
Shank Type
Taper

Description

Live Center, Bearing Type Dual-Bearing Design, Point Style CNC, Shank Taper Size MT4, Max. Speed 4,500 RPM, Shank Type - Machining Taper, Head Dia. 1.2310 in, Point Dia. 3/8 in, Max. Workpiece Weight 580 lb, Accuracy +/-0.00005 In., Application Sub-Spindle Machines
