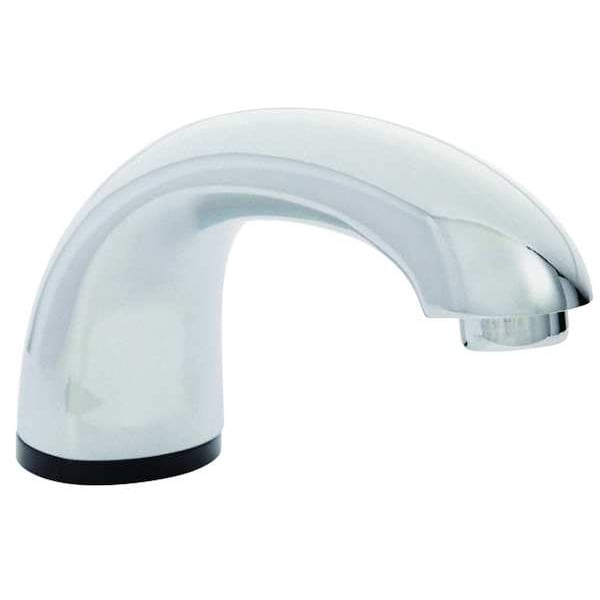

Sensor Bathroom Sensor Faucet, Single Hole Mount, Chrome 1 Hole

  • Mfr # 1782742

  • Zoro # G4397486


product price: $472.99
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
Single Hole
Mounting Type
Single-Hole Mount
Finish
Chrome
Number of Handles
0
Body Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1782742
Zoro #
G4397486
UPC #
086876210699
Country of Origin
United States

Dimensions

Height
3-3/4 in
Spout Length
6 1/2 in
Width
2.1"
Spout Height
3 31/32 in
Hose Length
12 in
Overall Width
2 13/100 in
Spout Height - Maximum
3 31/32 in
For Surface Thickness - Maximum
1 19/32 in
Inlet Connection Size
3/8 in

Details

Mounting Hole Center to Center
Single Hole
Mounting Type
Single-Hole Mount
Finish
Chrome
Number of Handles
0
Body Material
Brass
Voltage
6V DC
Item
Bathroom Sensor Faucet
Drain Type
None
Includes
3-in-1 Spacer, Aerator, Rubber Gasket, Spout Assembly, Supply Lines, Top Spacer
Faucet Type
Bathroom Sink Faucet
Battery Charger CEC Compliant
CEC Compliant
Replacement Cartridge
4FRP7
Faucet Spout
Rigid
Valve Type
Compression
Power Source
Battery
Series
Milano Auto Faucet
Connection
3/8 in Compression
Standards
ASME A112. 18.1/CSA B125.1, IAPMO/cUPC
Temp. Control
Yes
ADA Compliance
ADA Compliant
Sensor Range
3 in
Type
Hands Free
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Features
- SST with surround sensor-Technology - indry in cam-gear Technology
Temperature Control
Adjustable Temperature
Spout Reach
5 1/16 in
Valve Type - Faucets
Hot/Cold Cartridge
Max. Mounting Hole Center Distance
Single Hole
Water Inlet Connection Type
Push in Compression
Sensor Type
Fixed
Color
Stainless Steel
Application
Commercial
Sensor Range - Maximum
3 in
Time Out
10 sec
Water Supply Type
Hot and Cold Lines
Number of Batteries
4
Includes Transformer
Transformer Not Included
Operation Method
Motion Sensor
Vandal Resistance
Not Vandal-Resistant
Includes Handle
Handle Not Included
Compatible Cartridge Manufacturer Part Number
490251
Includes Drain
Drain Not Included
For Location
Bathroom
Current
2 AMP
Spout Shape
Arc
CEC Compliance
CEC Compliant
Ligature Resistance
No
Inlet Connection Type
Compression
Flow Type
Aerated
Includes Batteries
Batteries Included
Flow Rate - Maximum
0.5 gpm
Number of Mounting Holes
1
Installation Type
Deck

Description

Bathroom Faucet, Faucet Operation Sensor, Handle Type Sensor, Connection 3/8 In. compression, 1.5 gpm Flow Rate, Number of Holes 1, Mounting Hole Center to Center Single Hole, Body Material Brass, Faucet Spout Rigid, ADA Compliant Yes, Drain Type None, Mounting Type Deck, Power Source Alkaline Battery, Voltage 6VDC, Spout Length 6-1/2 In., Sensor Range 3 In., Valve Type Mixing, Finish Chrome, Flow Outlet Type Aerated, Temp. Control Standard

Restrictions

This item has been restricted from sale in the following states: CA
