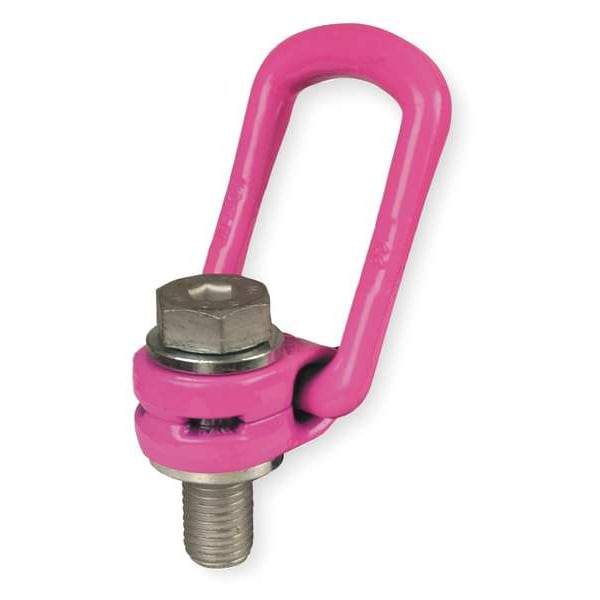

Hoist Ring, 180 Pivot, 5500 lb.Load Cap.
- Mfr # 8502352
- Zoro # G1103943
product price:Â
$
284.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Bolt-on
Series
VLBG-Z
Pivot
180 Degrees
Swivel Angle
360 Degrees
Working Load Limit
5,500 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 8502352
- Zoro #
- G1103943
- UPC #
- -
- Country of Origin
- Germany
- Item
- Hoist Ring
- Mounting Style
- Bolt-on
- Series
- VLBG-Z
- Pivot
- 180 Degrees
- Swivel Angle
- 360 Degrees
- Working Load Limit
- 5,500 lb
- Standards
- DGUV-R 109-017:2020-12, DIN EN 1677-1:2009-03, DIN EN 1677-4:2009-03
- Installation Torque
- 185 ft-lb
- Material
- Steel
- Minimum Operating Temperature
- -40 Degrees F
- Finish
- Powder Coated
- Maximum Operating Temperature
- 662 Degrees F
- Movement Type
- Pivot, Swivel
- Minimum Installation Torque
- 221.3 ft-lb
- Color
- Pink
- Mount Type
- Screw-On
- Operation
- Lifting
- Pivot Angle
- 180 Degrees
Description
Hoist Ring, Movement Type Pivot, Swivel, Material Steel, Mount Type Screw-On, Working Load Limit 5,500 lb, Thread Size 7/8 In.-9, Operation Lifting, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 1/8 in, Bail Inside Length 2 1/8 in, Bail Inside Width 2 1/8 in, Bail Thickness 21/32 in, Overall Length 6 1/8 in, Overall Width 3 1/4 in, Hardware Included Not Applicable, Minimum Installation Torque 221.3 ft-lb, Finish Powder Coated
