0.625, OD1.457, Aluminum, CPRS23-10-A
Mfr # CPRS23-10-A
Zoro # G3397925
product price:Â $20.59
/eaKey Features
Bore Dia.
0.625 in
Max. RPM
15000 RPM
Outside Dia.
1.457 in (37.0 mm)
Overall Length
1.181 in (30.0 mm)
Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CPRS23-10-A
- Zoro #
- G3397925
- UPC #
- 634529303764
- Country of Origin
- Germany
Dimensions
- Bore Dia.
- 0.625 in
- Outside Dia.
- 1.457 in (37.0 mm)
- Overall Length
- 1.181 in (30.0 mm)
- Set Screw Size
- M4
- Fastening Dimensions
- Metric
- Hub Width
- 0.394 in
Details
- Max. RPM
- 15000 RPM
- Material
- Aluminum
- Weight
- 0.0573 lbs
- Finish
- Clear Anodized
- Screw Type
- Clamp
- Style
- Clamp
- Max. Temp. Range (F)
- -22°F to 175°F (-30°C to 79°C)
- Screw Material
- Alloy Steel
- Bore Tolerance
- +0.002 in / +0.001 in
- Screw Finish
- Black Oxide
- Measurement Type
- Inch
- Recommended Shaft Tolerance
- +0.0000 in / -0.0005 in
- Screw Seating Torque
- 3.0 Nm
- B1 Shaft Penetration
- 0.570 in
- Number of Screws
- 1 ea
Description

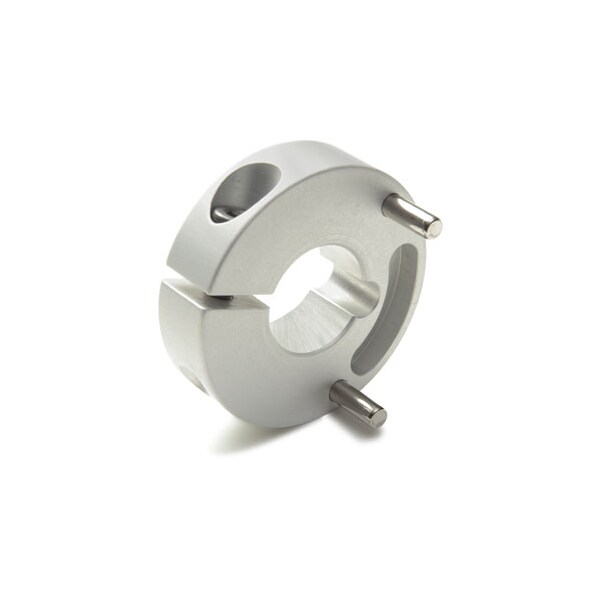

Ruland supplied Controlflex couplings are a lightweight, low inertia, and zero-backlash coupling designed for use in encoders, tachometers, resolvers, and light duty power transmission applications. This clamp style single insert type hub requires the user to mate it with one other hub and one acetal insert. The multiple piece construction allows for a highly customizable coupling that easily combines clamp hubs with inch, metric, keyed, and keyless bores. This hub has a 0.625" bore, 1.457" OD, and 0.394" length. The use of one insert allows for higher misalignment capabilities than double insert styles. It is compact and can fit in smaller envelopes than equivalent single beam or double insert Controlflex styles. It has a balanced design and can accommodate speeds of up to 15000 RPM. This Controlflex hub is RoHS and REACH compliant and manufactured by Schmidt Kupplung in Germany.
