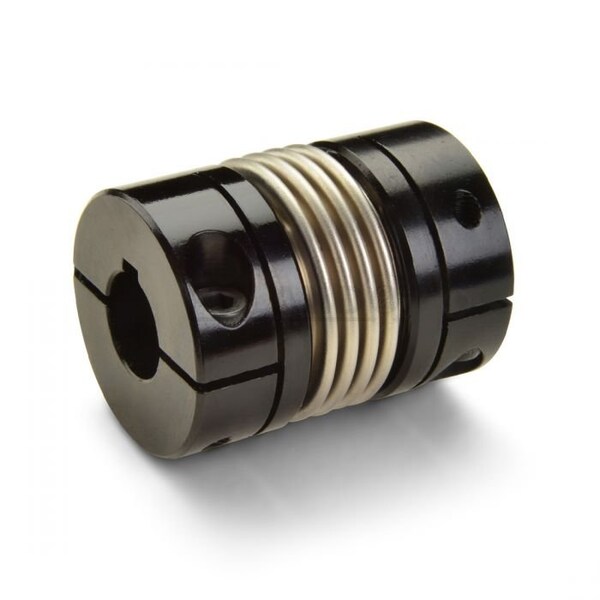

Bellows Coupling
Mfr # BCK44-1 1/2"-30MM-A
Zoro # G308675891
product price: $240.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3.44 in
Dynamic Torque Non-Reversing
462.5 lb-in
Screw Material
Alloy Steel
Dynamic Torque Reversing
231.3 lb-in
Moment of Inertia
1.405 lb-in sq
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BCK44-1 1/2"-30MM-A
Zoro #
G308675891
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3.44 in
Bore Diameter 1
1 1/2 in
Maximum Bore Diameter
1 1/2 in
Coupling Outside Diameter
2.75 in
Minimum Bore Diameter
30 mm
Different Bore Sizes
Yes
Bore Diameter 2
30 mm
Screw Thread Size
M8
Keyway Width 1
3/8 in
Clearance Diameter
2.75 in
Keyway Width 2
8 mm
Hub Length
1.2 in
Length Through Bore 1
1.58 in
Keyway Depth 2
3.3 mm
Keyway Depth 1
3/16 in
Length Through Bore 2
1.58 in
Description
Bellows Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 30 mm, Coupling Outside Diameter 2.75 in, Maximum Speed 10,000 RPM, Maximum Torque 925 lb-in, Hub Material Aluminum, Overall Length 3.44 in, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Clearance Diameter 2.75 in, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 1.58 in, Length Through Bore 2 1.58 in, Parallel Misalignment 0.012 in, Bore Type Round Keyed
