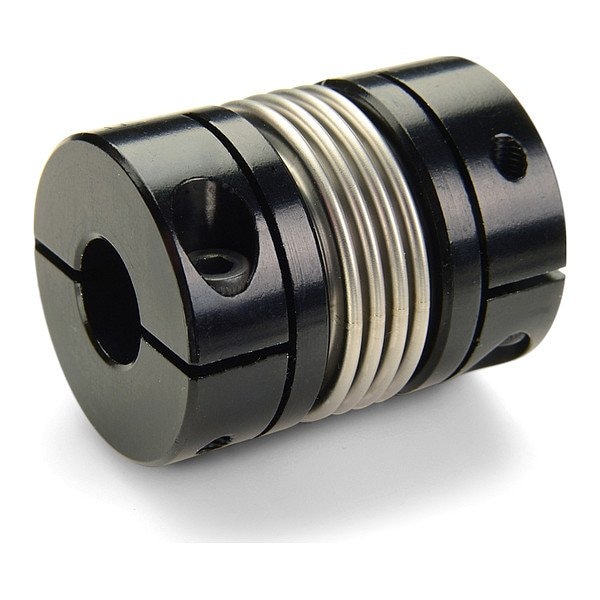

Bellows Coupling
Mfr # MBC70-30-30-A
Zoro # G108677217
product price: $197.99
/ea
Free Shipping & Returns
Key Features
Overall Length
87.4 mm
Axial Motion
0.76 mm
Moment of Inertia
0.003118 kgf/m sq
Dynamic Torque Reversing
26.3 N-m
Dynamic Torque Non-Reversing
52.25 N-m
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBC70-30-30-A
Zoro #
G108677217
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
87.4 mm
Different Bore Sizes
No
Bore Diameter 1
30 mm
Coupling Outside Diameter
69.9 mm
Bore Diameter 2
30 mm
Length Through Bore 2
40.2 mm
Length Through Bore 1
40.2 mm
Hub Length
30.48 mm
Maximum Bore Diameter
30 mm
Minimum Bore Diameter
30 mm
Screw Thread Size
M8
Description
Bellows Coupling, Bore Diameter 1 30 mm, Bore Diameter 2 30 mm, Coupling Outside Diameter 69.9 mm, Maximum Speed 10,000 RPM, Maximum Torque 104.5 N-m, Hub Material Aluminum, Overall Length 87.4 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 40.2 mm, Length Through Bore 2 40.2 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 52.25 N-m, Dynamic Torque Reversing 26.3 N-m
