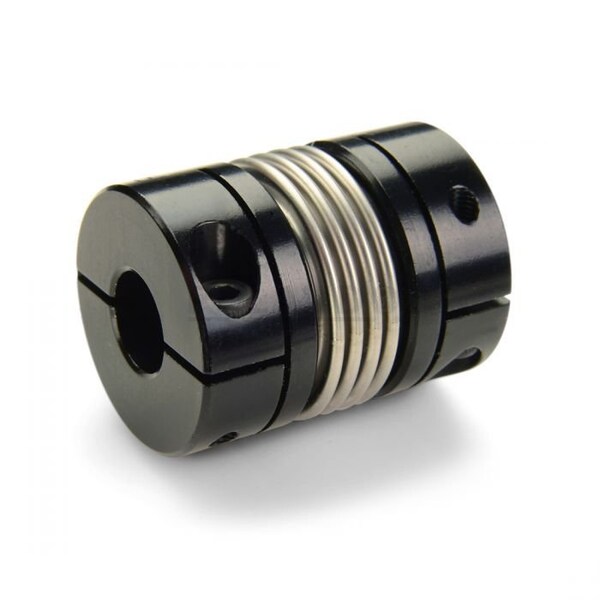

Bellows Coupling
Mfr # MBC80-30-30-A
Zoro # G908677233
product price: $226.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Screw Material
Alloy Steel
Bore Tolerance
+0.03/-0.00 mm
Axial Motion
0.76 mm
Dynamic Torque Non-Reversing
76 N-m
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBC80-30-30-A
Zoro #
G908677233
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Different Bore Sizes
No
Coupling Outside Diameter
79.4 mm
Bore Diameter 2
30 mm
Bore Diameter 1
30 mm
Maximum Bore Diameter
30 mm
Length Through Bore 2
44.5 mm
Screw Thread Size
M8
Hub Length
34.93 mm
Screw Length
25 mm
Length Through Bore 1
44.5 mm
Minimum Bore Diameter
30 mm
Clearance Diameter
79.4 mm
Description
Bellows Coupling, Bore Diameter 1 30 mm, Bore Diameter 2 30 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
