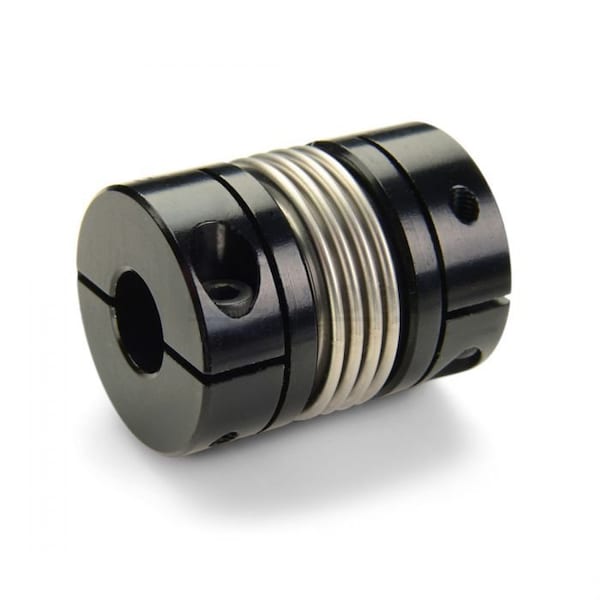

Bellows Coupling
Mfr # MBC80-40-35-A
Zoro # G008677287
product price: $226.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Screw Material
Alloy Steel
Bore Tolerance
+0.03/-0.00 mm
Dynamic Torque Non-Reversing
76 N-m
Axial Motion
0.76 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBC80-40-35-A
Zoro #
G008677287
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Coupling Outside Diameter
79.4 mm
Maximum Bore Diameter
40 mm
Minimum Bore Diameter
35 mm
Bore Diameter 2
35 mm
Bore Diameter 1
40 mm
Different Bore Sizes
Yes
Length Through Bore 2
44.5 mm
Clearance Diameter
79.4 mm
Length Through Bore 1
44.5 mm
Hub Length
34.93 mm
Screw Thread Size
M8
Screw Length
25 mm
Description
Bellows Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 35 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
