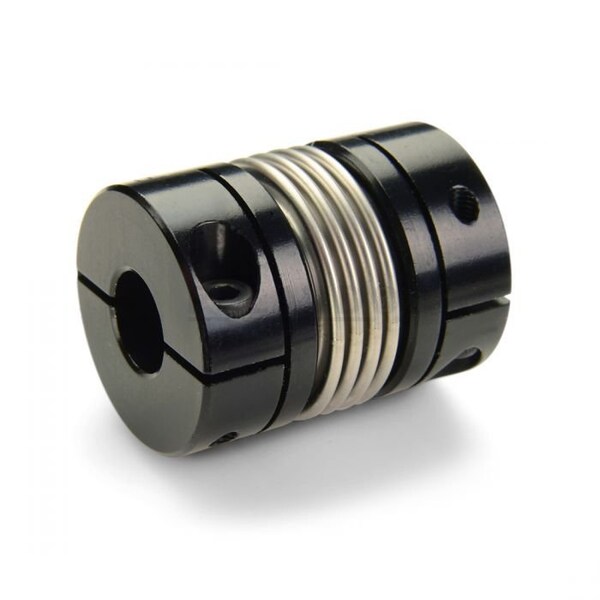

Bellows Coupling

Mfr # MBC80-45-45-A
Zoro # G408677290

272.99

Free Shipping & Returns

Key Features

Overall Length

96.9 mm

Axial Motion

0.76 mm

Screw Material

Alloy Steel

Dynamic Torque Non-Reversing

76 N-m

Dynamic Torque Reversing

38 N-m

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: MBC80-45-45-A
Zoro #: G408677290
UPC #: -
Country of Origin: United States

Dimensions

Overall Length: 96.9 mm
Different Bore Sizes: No
Coupling Outside Diameter: 79.4 mm
Bore Diameter 1: 45 mm
Bore Diameter 2: 45 mm
Screw Thread Size: M8
Clearance Diameter: 79.4 mm
Hub Length: 34.93 mm
Maximum Bore Diameter: 45 mm
Screw Length: 25 mm
Length Through Bore 2: 44.5 mm
Length Through Bore 1: 44.5 mm
Minimum Bore Diameter: 45 mm
Wire Rope Length: 96.9 mm
Length: 96.9 mm

Details

Axial Motion: 0.76 mm
Screw Material: Alloy Steel
Dynamic Torque Non-Reversing: 76 N-m
Dynamic Torque Reversing: 38 N-m
Moment of Inertia: 0.0007654 kgf/m sq
Bore Tolerance: +0.03/-0.00 mm
Item: Bellows Coupling
System of Measurement: Metric
Standards: Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Minimum Operating Temperature: -40 Degrees C
Bellows Material Grade: 321
Bellows Material: Stainless Steel
Maximum Speed: 10,000 RPM
Zero Backlash: Yes
Hub Material Grade: 2024
Maximum Operating Temperature: 93 Degrees C
Hub Material: Aluminum
Features: Balanced Design for High RPM,Constant Velocity,High Torque with Low Inertia,High Torsional Stiffness,Long Life with no Maintenance
Application: Encoders, Stepper / Servo
Full Bearing Support Required: Yes
Included Screws: (2) Hex Cap Screw
Bellows Material Finish: None
Shaft Tolerance: +0.000 mm / -0.013 mm
Bore Type: Round
Screw Material Finish: Black Oxide
For Misalignment Type: Angular, Axial, Parallel
Angular Misalignment: 2 Degrees
Parallel Misalignment: 0.3 mm
Fastener Tightening Torque: 39 N-m
Torsional Stiffness: 395.5 N-m/Deg
Maximum Torque: 152 N-m
Shaft Locking Type: Clamp On
Number of Locking Screws: 2
Hub Material Finish: Sulfuric Anodized

Description

Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 45 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
