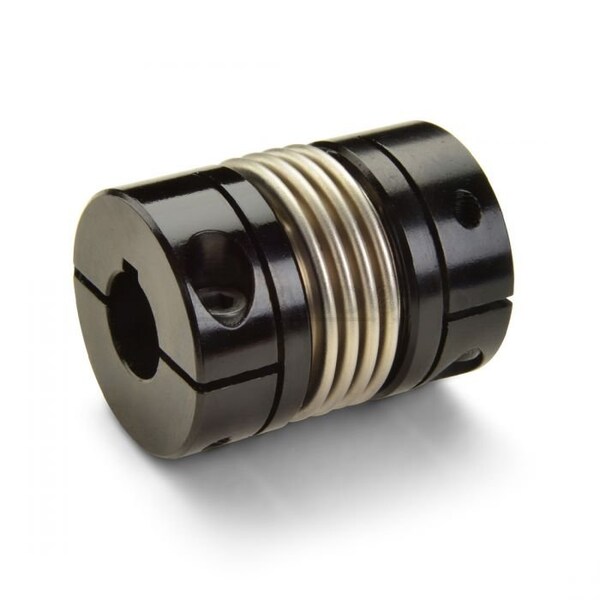

Bellows Coupling
Mfr # MBCK70-35-25-A
Zoro # G008677065
product price: $252.99
/ea
Free Shipping & Returns
Key Features
Overall Length
87.4 mm
Axial Motion
0.76 mm
Screw Material
Alloy Steel
Dynamic Torque Non-Reversing
52.25 N-m
Bore Tolerance
+0.03/-0.00 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBCK70-35-25-A
Zoro #
G008677065
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
87.4 mm
Minimum Bore Diameter
25 mm
Coupling Outside Diameter
69.9 mm
Bore Diameter 2
25 mm
Maximum Bore Diameter
35 mm
Different Bore Sizes
Yes
Bore Diameter 1
35 mm
Length Through Bore 1
40.2 mm
Hub Length
30.48 mm
Screw Thread Size
M8
Keyway Width 2
8 mm
Keyway Depth 2
3.3 mm
Keyway Depth 1
3.3 mm
Keyway Width 1
10 mm
Length Through Bore 2
40.2 mm
Description
Bellows Coupling, Bore Diameter 1 35 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 69.9 mm, Maximum Speed 10,000 RPM, Maximum Torque 104.5 N-m, Hub Material Aluminum, Overall Length 87.4 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 40.2 mm, Length Through Bore 2 40.2 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 52.25 N-m
