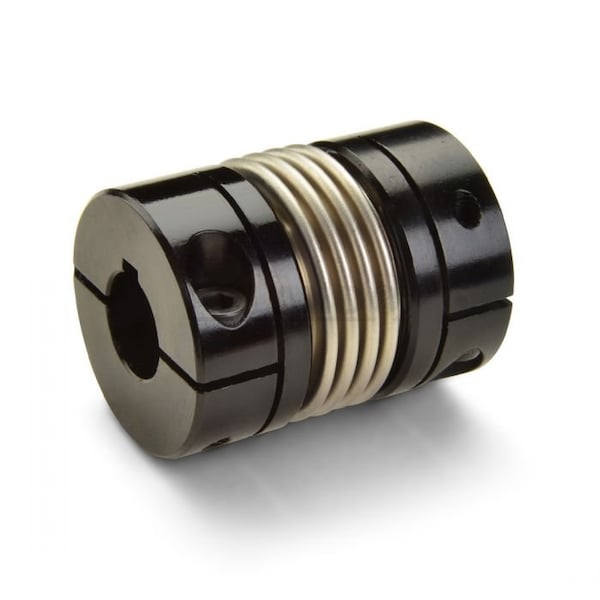

Bellows Coupling
Mfr # MBCK80-45-35-A
Zoro # G908677011
product price: $263.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Screw Material
Alloy Steel
Bore Tolerance
+0.03/-0.00 mm
Dynamic Torque Reversing
38 N-m
Moment of Inertia
0.0007841 kgf/m sq
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBCK80-45-35-A
Zoro #
G908677011
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Bore Diameter 2
35 mm
Maximum Bore Diameter
45 mm
Different Bore Sizes
Yes
Minimum Bore Diameter
35 mm
Coupling Outside Diameter
79.4 mm
Bore Diameter 1
45 mm
Keyway Width 1
14 mm
Length Through Bore 2
44.5 mm
Keyway Width 2
10 mm
Clearance Diameter
79.4 mm
Hub Length
34.93 mm
Keyway Depth 1
3.8 mm
Keyway Depth 2
3.3 mm
Screw Length
25 mm
Length Through Bore 1
44.5 mm
Screw Thread Size
M8
Description
Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 35 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 76 N-m
