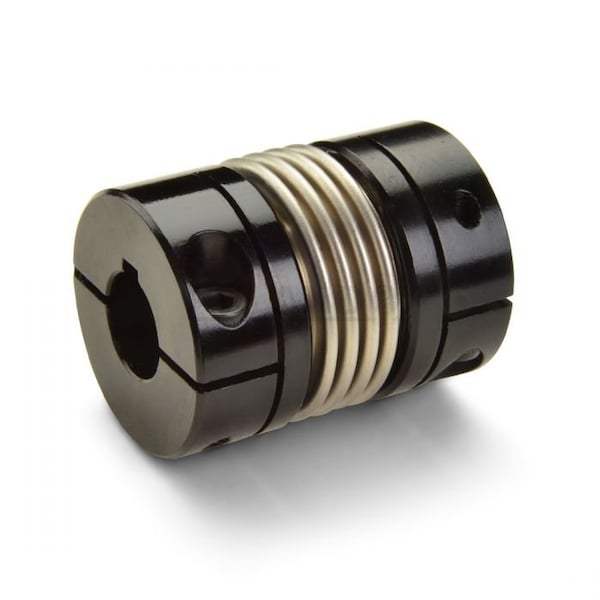

Bellows Coupling
Mfr # MBCK80-45-40-A
Zoro # G908677035
product price: $263.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Bore Tolerance
+0.03/-0.00 mm
Axial Motion
0.76 mm
Moment of Inertia
0.0007741 kgf/m sq
Dynamic Torque Non-Reversing
76 N-m
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBCK80-45-40-A
Zoro #
G908677035
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Bore Diameter 2
40 mm
Maximum Bore Diameter
45 mm
Minimum Bore Diameter
40 mm
Coupling Outside Diameter
79.4 mm
Bore Diameter 1
45 mm
Different Bore Sizes
Yes
Keyway Depth 2
3.3 mm
Clearance Diameter
79.4 mm
Keyway Width 2
12 mm
Hub Length
34.93 mm
Length Through Bore 2
44.5 mm
Screw Thread Size
M8
Keyway Width 1
14 mm
Length Through Bore 1
44.5 mm
Screw Length
25 mm
Keyway Depth 1
3.8 mm
Description
Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 40 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 76 N-m
