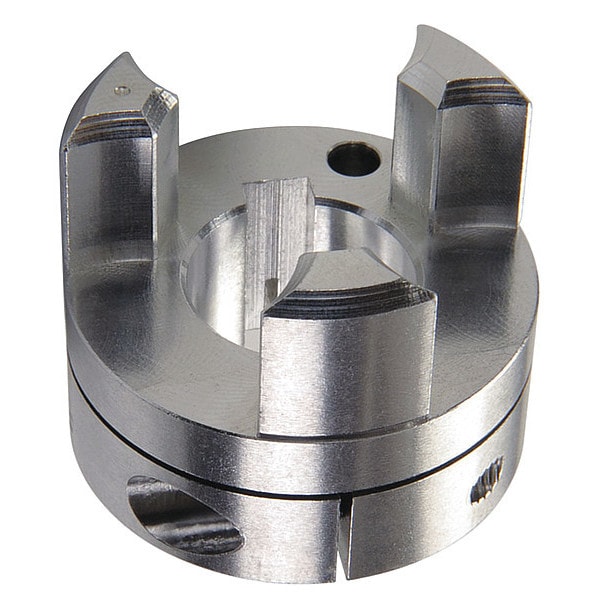

Clamp Jaw Coupling Hub, 24mm, Aluminum
- Mfr # MJCC51-24-A
- Zoro # G7097811
product price:Â
$
122.99
/ea
Free Shipping & Returns
Key Features
Coupling Size
MJC51
Hub Material
Aluminum
Maximum Operating Temperature
82 Degrees C
Shaft Tolerance
+0.000/-0.013 mm
Length through Bore
20.8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MJCC51-24-A
- Zoro #
- G7097811
- UPC #
- 634529131237
- Country of Origin
- United States
- Item
- Jaw Coupling Hub
- Hub Material
- Aluminum
- Maximum Operating Temperature
- 82 Degrees C
- Shaft Tolerance
- +0.000/-0.013 mm
- Bore Tolerance
- +0.05/-0.00 mm
- System of Measurement
- Metric
- Screw Material Finish
- Black Oxide
- Recommended Hub Gap
- 1.3 mm
- Hub Material Grade
- 2024
- Number of Locking Screws
- 1
- Fail Safe
- Yes
- Zero Backlash
- Yes
- Hub Projection
- 20.8 mm
- Included Screws
- (1) Hex Socket Cap Screw
- Minimum Operating Temperature
- -23 Degrees C
- Full Bearing Support Required
- Yes
- Maximum Speed
- 8,000 RPM
- Bore Type
- Round Bore with Keyway
- Hub Material Finish
- Bright
- Weight
- 0.41 lb
- Shaft Locking Type
- Clamp On
- Screw Material
- Alloy Steel
- Jaw Profile
- Curved
- Standards
- Conflict Minerals Compliant, ISO 9001:2015, REACH, RoHS3 Compliant
Description
Jaw Coupling Hub, Coupling Size MJC51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 3.3 mm, Keyway Width 8 mm, Bore Diameter 24 mm, Shaft Locking Type Clamp On, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M5, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
