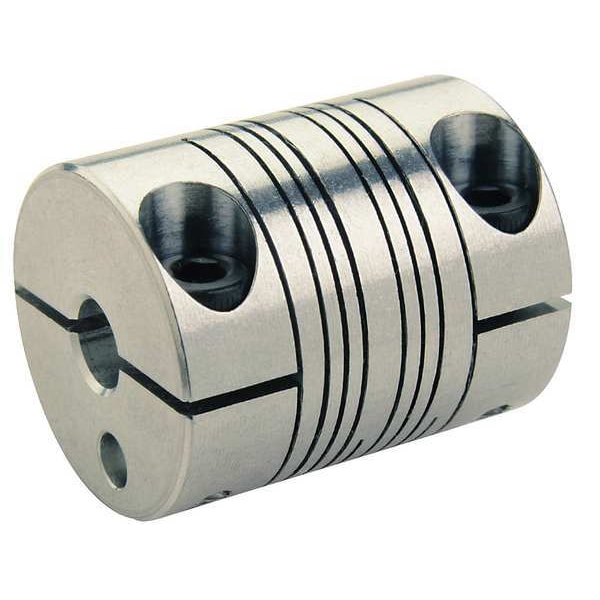

Coupling, 4 Beam Clamp, 5/32in.x 1/8in.
Mfr # PCR10-2.5-2-A
Zoro # G8081245
product price: $34.19
/eaKey Features
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
Aluminum
Outside Dia.
0.625 in
Overall Length
51/64 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PCR10-2.5-2-A
Zoro #
G8081245
UPC #
634529032367
Country of Origin
United States
Dimensions
Bore Dia.
5/32 in x 1/8 in
Outside Dia.
0.625 in
Overall Length
51/64 in
Outside Dia. (In.)
0.625 in
Length through Bore (In.)
0.336
Outside Dia. (mm)
15.9
Screw Size
M2
Length through Bore
0.336 in
Clearance Dia. (In.)
0.625 in
Clearance Dia. (mm)
15.9
Screw Size (mm)
M2
Overall Length (In.)
0.8
Overall Length (mm)
20.3
Size
PCR10
Length through Bore (mm)
8.53
Different Bore Sizes
Yes
Screw Thread Size
M2
Coupling Outside Diameter
5/8 in
Length Through Bore 2
0.4 in
Maximum Bore Diameter
5/32 in
Bore Diameter 1
5/32 in
Bore Diameter 2
1/8 in
Length Through Bore 1
0.4 in
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/32 in, Bore Diameter 2 1/8 in, Coupling Material Aluminum, Coupling Outside Diameter 5/8 in, Maximum Speed 6,000 RPM, Maximum Torque 12 in-lb, Axial Motion 0.005 in, Overall Length 51/64 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 1.85 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 0.4 in
