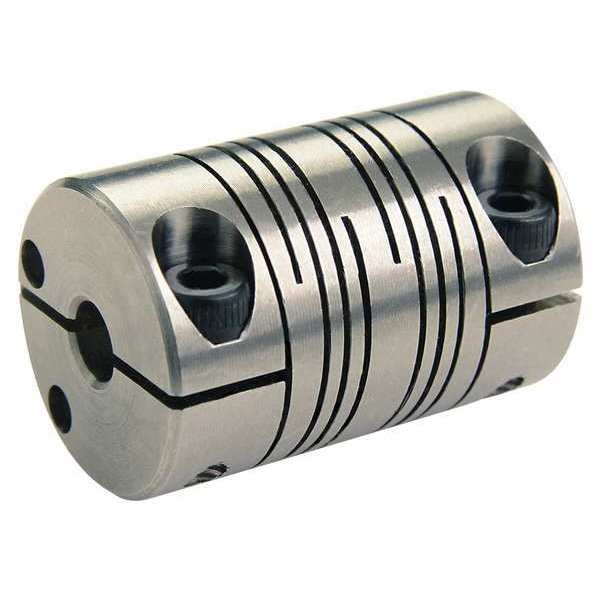

  11. Coupling, 6 Beam Clamp, 16mmx10mm
Ruland Coupling, 6 Beam Clamp, 16mmx10mm FCMR38-16-10-A - main

Coupling, 6 Beam Clamp, 16mmx10mm

  • Mfr # FCMR38-16-10-A

  • Zoro # G8193473

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Bore Dia.
16mm x 10mm
Material - Couplings
Aluminum
Outside Dia.
38.1 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FCMR38-16-10-A
Zoro #
G8193473
UPC #
634529008188
Country of Origin
United States

Dimensions

Bore Dia.
16mm x 10mm
Outside Dia.
38.1 mm
Overall Length
57.2 mm
Screw Size
M5
Screw Size (mm)
M5
Outside Dia. (In.)
1.5
Length through Bore (mm)
26.47
Size
FCMR38
Clearance Dia. (In.)
1.642 in
Clearance Dia. (mm)
41.71
Outside Dia. (mm)
38.1
Length through Bore
26.47 mm
Length through Bore (In.)
1.042
Overall Length (In.)
2.25
Overall Length (mm)
57.2
Length Through Bore 1
27.3 mm
Length Through Bore 2
27.3 mm
Bore Diameter 1
16 mm
Minimum Bore Diameter
10 mm
Bore Diameter 2
10 mm
Coupling Outside Diameter
38.1 mm
Different Bore Sizes
Yes
Screw Thread Size
M5

Details

Shaft Locking Type - Couplings
1 Piece Clamp
Item
Motion Control Coupling
System of Measurement
Metric
Material - Couplings
Aluminum
Finish
Bright
Min. Bore (mm)
10
Max. Parallel Misalignment (In.)
0.015 in
Item - Motion Control Couplings
Motion Control Coupling
Max. Bore (mm)
16 mm
Torsional Stiffness (Deg./In.-Lbs.)
0.044
Material
Aluminum
Max. RPM
6,000 RPM
Max. Temp. Range (F)
225 Degrees
Max. Angular Misalignment
3 Degrees
Torque (In.-Lbs.)
95
Max. Axial Misalignment (In.)
+/-0.03
Rated Torque
95 in-lb
Style
6-Beam Clamp
Max. Temp.
225 Degrees F
Screw Type
Cap Screw
Standards
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Application
Light-Duty Power Transmission, Servo Motors to Lead Screws
Screw Material
Alloy Steel with Nypatch
Bore Tolerance
+0.025/-0.000 mm
Maximum Operating Temperature
107 Degrees C
Parallel Misalignment
0.76 mm
Full Bearing Support Required
Yes
For Environment
Angular Misalignment, Axial Motion, Parallel Misalignment
Zero Backlash
Yes
Series
FCMR
Included Screws
(2) Hex Socket Cap Screw
Dynamic Torque Reversing
2.68 N-m
Bore Type
Round
Moment of Inertia
0.000030032 kgf/m sq
Features
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spiral Cuts, Zero-Backlash
Dynamic Torque Non-Reversing
5.37 N-m
Maximum Speed
6,000 RPM
Number of Beams
6
Torsional Stiffness
2.56 N-m/Deg
Number of Locking Screws
2
Minimum Operating Temperature
-40 Degrees C
Coupling Material Grade
7075
Maximum Torque
10.73 N-m
Shaft Locking Type
Clamp On
Screw Material Finish
Black Oxide
For Misalignment Type
Angular, Axial, Parallel
Angular Misalignment
3 Degrees
Shaft Tolerance
+0.000/-0.013 mm
Coupling Material Finish
Bright
Coupling Material
Aluminum
Axial Motion
0.38 mm
Fastener Tightening Torque
9.5 N-m

Description

Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 16 mm, Bore Diameter 2 10 mm, Coupling Material Aluminum, Coupling Outside Diameter 38.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 10.73 N-m, Axial Motion 0.38 mm, Overall Length 57.2 mm, Parallel Misalignment 0.76 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 2.56 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 27.3 mm
