  11. Coupling, 6 Beam Clamp, 7mmx7mm

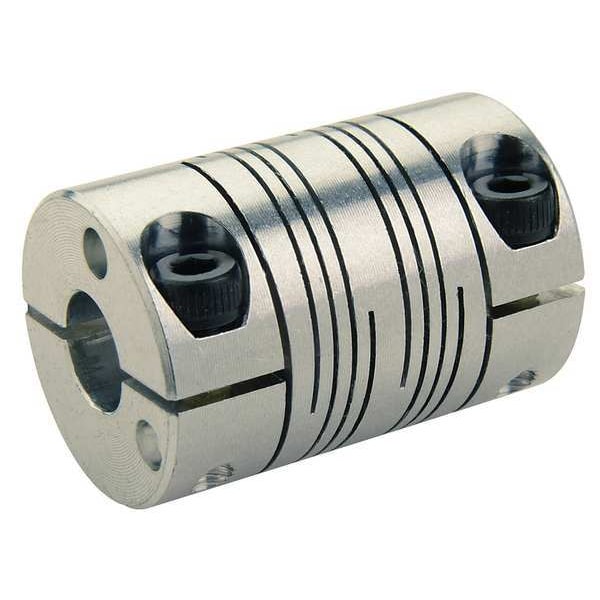

Ruland Coupling, 6 Beam Clamp, 7mmx7mm FCMR19-7-7-A - main

Coupling, 6 Beam Clamp, 7mmx7mm

  • Mfr # FCMR19-7-7-A

  • Zoro # G7900943

product price: $41.29
/ea

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Bore Dia.
7mm x 7mm
Material - Couplings
Aluminum
Outside Dia.
19.1 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FCMR19-7-7-A
Zoro #
G7900943
UPC #
634529007433
Country of Origin
United States

Dimensions

Bore Dia.
7mm x 7mm
Outside Dia.
19.1 mm
Overall Length
31.8 mm
Length through Bore (mm)
15.06
Length through Bore (In.)
0.593
Clearance Dia. (In.)
0.879 in
Clearance Dia. (mm)
22.33
Outside Dia. (mm)
19.1
Screw Size (mm)
M3
Screw Size
M3
Overall Length (mm)
31.8
Overall Length (In.)
1.25
Size
FCMR19
Length through Bore
15.06 mm
Outside Dia. (In.)
0.75
Length Through Bore 2
15.4 mm
Screw Thread Size
M3
Length Through Bore 1
15.4 mm
Bore Diameter 1
7 mm
Bore Diameter 2
7 mm
Coupling Outside Diameter
19.1 mm
Different Bore Sizes
No

Details

Item
Motion Control Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Material - Couplings
Aluminum
Finish
Bright
Torsional Stiffness (Deg./In.-Lbs.)
0.189
Max. Angular Misalignment
3 Degrees
Screw Type
Cap Screw
Material
Aluminum
Torque (In.-Lbs.)
24
Min. Bore (mm)
7
Item - Motion Control Couplings
Motion Control Coupling
Max. Bore (mm)
7 mm
Max. Temp. Range (F)
225 Degrees
Max. Temp.
225 Degrees F
Max. RPM
6,000 RPM
Max. Parallel Misalignment (In.)
0.008 in
Rated Torque
24 in-lb
Style
6-Beam Clamp
Max. Axial Misalignment (In.)
+/-0.005
Application
Servo Motors to Lead Screws
Standards
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Screw Material
Alloy Steel with Nypatch
Bore Tolerance
+0.025/-0.000 mm
Coupling Material Grade
7075
Maximum Operating Temperature
107 Degrees C
Dynamic Torque Reversing
0.68 N-m
Bore Type
Round
Maximum Speed
6,000 RPM
Included Screws
(2) Hex Socket Cap Screw
For Environment
Angular Misalignment, Axial Motion, Parallel Misalignment
Screw Material Finish
Black Oxide
Dynamic Torque Non-Reversing
1.36 N-m
Maximum Torque
2.71 N-m
Series
FCMR
Number of Beams
6
Coupling Material
Aluminum
Shaft Tolerance
+0.000/-0.013 mm
For Misalignment Type
Angular, Axial, Parallel
Shaft Locking Type
Clamp On
Features
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spiral Cuts, Zero-Backlash
Minimum Operating Temperature
-40 Degrees C
Moment of Inertia
0.000001037 kgf/m sq
Axial Motion
0.13 mm
Number of Locking Screws
2
Zero Backlash
Yes
Angular Misalignment
3 Degrees
Fastener Tightening Torque
2.1 N-m
Coupling Material Finish
Bright
Full Bearing Support Required
Yes
Torsional Stiffness
0.6 N-m/Deg
Parallel Misalignment
0.2 mm

Description

Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 7 mm, Bore Diameter 2 7 mm, Coupling Material Aluminum, Coupling Outside Diameter 19.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 2.71 N-m, Axial Motion 0.13 mm, Overall Length 31.8 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.6 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 15.4 mm
