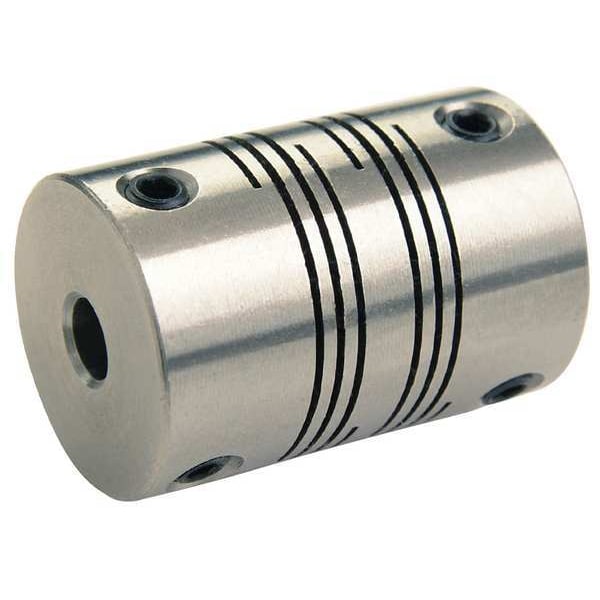

Coupling, 6 Beam Set Screw, 5/8in.x 1/2in.
Mfr # FSR24-10-8-SS
Zoro # G7837496
product price: $253.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Inch
Bore Dia.
5/8 in x 1/2 in
Material - Couplings
Stainless Steel
Outside Dia.
1.5 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FSR24-10-8-SS
Zoro #
G7837496
UPC #
634529047149
Country of Origin
United States
Dimensions
Bore Dia.
5/8 in x 1/2 in
Outside Dia.
1.5 in
Overall Length
2 1/4 in
Length through Bore (mm)
26.47
Clearance Dia. (mm)
37.06
Overall Length (In.)
2.25
Outside Dia. (mm)
38.1
Overall Length (mm)
57.2
Screw Size
M6
Length through Bore (In.)
1.042
Screw Size (mm)
M6
Size
FSR24
Clearance Dia. (In.)
1.459 in
Length through Bore
1.042 in
Outside Dia. (In.)
1.5
Length Through Bore 1
1.1 in
Screw Thread Size
M6
Different Bore Sizes
Yes
Coupling Outside Diameter
1 1/2 in
Length Through Bore 2
1.1 in
Bore Diameter 2
1/2 in
Bore Diameter 1
5/8 in
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/8 in, Bore Diameter 2 1/2 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1 1/2 in, Maximum Speed 6,000 RPM, Maximum Torque 175 in-lb, Axial Motion 0.015 in, Overall Length 2 1/4 in, Parallel Misalignment 0.03 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 32.26 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 1.1 in
