  11. Coupling, Bellows Clamp, 8mmx4mm

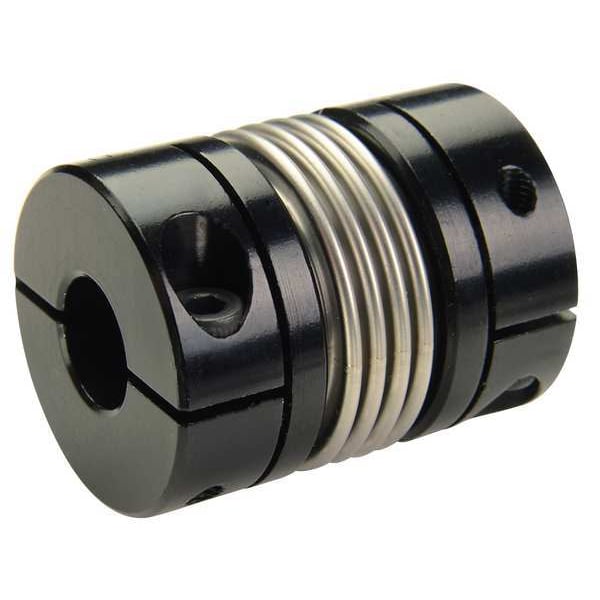

Ruland Coupling, Bellows Clamp, 8mmx4mm MBC19-8-4-A - main

Coupling, Bellows Clamp, 8mmx4mm

  • Mfr # MBC19-8-4-A

  • Zoro # G7877807

product price: $92.19
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Bore Dia.
8mm x 4mm
Material - Couplings
Aluminum
Outside Dia.
19.1 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MBC19-8-4-A
Zoro #
G7877807
UPC #
634529063699
Country of Origin
United States

Dimensions

Bore Dia.
8mm x 4mm
Outside Dia.
19.1 mm
Overall Length
30.2 mm
Length through Bore (In.)
0.594
Overall Length (In.)
1.224
Length through Bore
15.1 mm
Outside Dia. (In.)
0.750
Clearance Dia. (mm)
19.1
Screw Size (mm)
M2.5
Length through Bore (mm)
15.1
Clearance Dia. (In.)
0.75 in
Outside Dia. (mm)
19.1
Size
MBC19
Overall Length (mm)
30.20
Screw Size
M2.5
Length Through Bore 2
14.5 mm
Clearance Diameter
19.1 mm
Bore Diameter 2
4 mm
Coupling Outside Diameter
19.1 mm
Screw Thread Size
M2.5
Hub Length
10.4 mm
Minimum Bore Diameter
4 mm
Maximum Bore Diameter
8 mm
Bore Diameter 1
8 mm
Different Bore Sizes
Yes
Length Through Bore 1
14.5 mm

Details

Item
Motion Control Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Material - Couplings
Aluminum
Finish
Black Anodized
Max. Angular Misalignment
1.5 Degrees
Screw Type
Cap Screw
Style
Bellows Clamp
Rated Torque
40 in-lb
Max. Temp. Range (F)
200 Degrees
Max. RPM
10,000 RPM
Max. Parallel Misalignment (In.)
0.004 in
Max. Temp.
200 Degrees F
Item - Motion Control Couplings
Motion Control Coupling
Material
Aluminum
Max. Axial Misalignment (In.)
+/-0.008
Torque (In.-Lbs.)
40
Torsional Stiffness (Deg./In.-Lbs.)
120
Max. Bore (mm)
8 mm
Min. Bore (mm)
4.0
Application
Encoders, Stepper / Servo
Standards
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Fastener Tightening Torque
1.21 N-m
Parallel Misalignment
0.1 mm
Full Bearing Support Required
Yes
Bellows Material Grade
MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
Screw Material Finish
Black Oxide
Dynamic Torque Reversing
1.13 N-m
Minimum Operating Temperature
-40 Degrees C
Torsional Stiffness
14 N-m/Deg
Maximum Operating Temperature
93 Degrees C
Bellows Material Finish
None
For Misalignment Type
Angular, Axial, Parallel
Features
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Shaft Locking Type
Clamp On
Dynamic Torque Non-Reversing
2.25 N-m
Moment of Inertia
0.000000894 kgf/m sq
Included Screws
(2) Hex Socket Cap Screw
Bore Type
Round
Number of Locking Screws
2
Zero Backlash
Yes
Maximum Torque
4.5 N-m
Hub Material Finish
Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
Hub Material
Aluminum
Bellows Material
Stainless Steel
Angular Misalignment
1.5 Degrees
Axial Motion
0.25 mm
Shaft Tolerance
+0.000 mm / -0.013 mm
Hub Material Grade
2024
Maximum Speed
10,000 RPM

Description

Motion Control Coupling, Bore Diameter 1 8 mm, Bore Diameter 2 4 mm, Coupling Outside Diameter 19.1 mm, Maximum Speed 10,000 RPM, Maximum Torque 4.5 N-m, Hub Material Aluminum, Overall Length 30.2 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 19.1 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 14.5 mm, Length Through Bore 2 14.5 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 2.25 N-m
